LEGEND

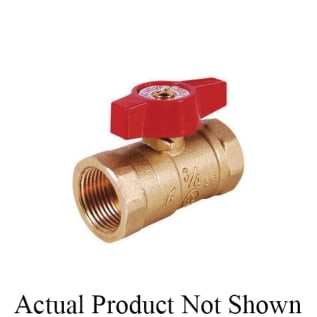

LEGEND Red Top™ 102-903 T-3005 Ball Valve With Handle, 1/2 in Nominal, FNPT End Style, Forged Brass Body, Import
LEGEND Red Top™ Ball Valve, Series: T-3005, 1/2 in Nominal, FNPT, 400 psi CWP, 0.39 in Orifice, Forged Brass Ball, 2.17 in Inlet to Outlet Length, 1.22 in Top to Inlet Center, Forged Brass Body, Forged Brass Stem and PTFE Seat Trim, Import
Documents
- Chrome plated ball and soft seats resist contamination build-up and offer a positive seal in low or moderate pressure gas applications
- Quarter-turn, ball-type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks
- The 400 psi pressure rating permits high-pressure air tests, without the grease-seal Blow-out common to plug-type gas cocks
- Not suitable for steam service
- CSA certified for use with natural, manufactured or mixed liquefied petroleum and LP gas/air mixtures
- CSA Certified 3-88 for use in 2 or 5 lb house piping systems
- Economy gas ball valve
- 400 psi non-shock cold working pressure
- Standard/Approvals: ANSI Z21.15/B1.20.1|ASME B1.20.1/B124 UNS C37700|CSA Certified|MHKZ.MH15973|UL Listed|VQGU.MH15973|Massachusetts Commonwealth approved|YRPV.MH15973
LEGEND Red Top™ Ball Valve, Series: T-3005, 1/2 in Nominal, FNPT, 400 psi CWP, 0.39 in Orifice, Forged Brass Ball, 2.17 in Inlet to Outlet Length, 1.22 in Top to Inlet Center, Forged Brass Body, Forged Brass Stem and PTFE Seat Trim, Import
- Brand: LEGENDBall Material: Forged BrassBody Material: Forged BrassDomestic/Import: ImportEnd Style: FNPTInlet to Outlet Length: 2.17Nominal Size: 1/2Orifice Size: 0.39Pressure Rating: 400 psi CWPSeries: T-3005Top to Inlet Center: 1.22Trim Material: Forged Brass Stem and PTFE Seat
