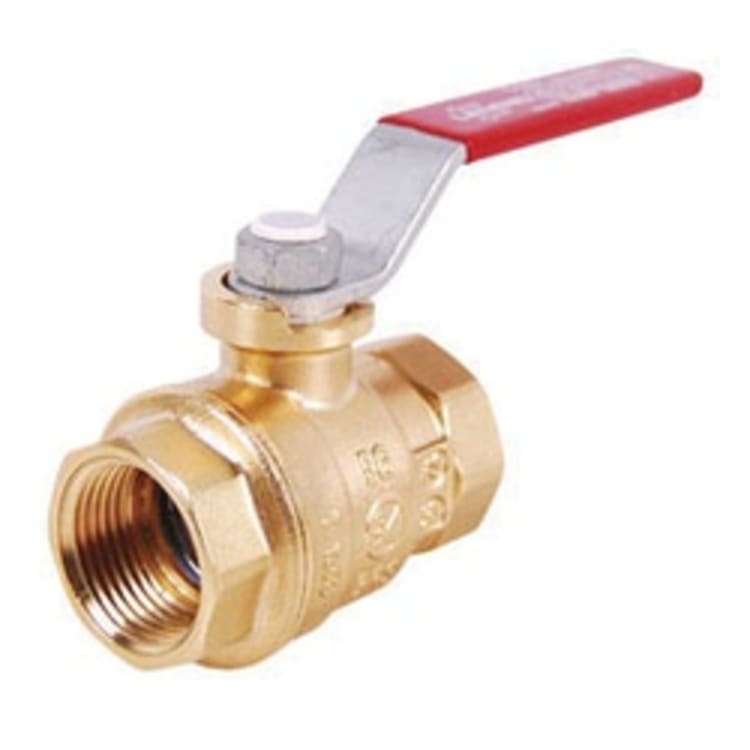

LEGEND 101-026 T-1001 1-Piece Ball Valve, 1-1/4 in, FNPT x IPS, Brass Body, Full Port, Import

22848 MFG #: 101-026
$60.12 / ea
  • Actuator Type: Lever Operated
  • Ball Material: Brass
  • Body Material: Brass
  • Domestic/Import: Import
  • End Style: FNPT x IPS
  • Finish: Polished Chrome
  • Media: Oil/Steam/Water
  • Nominal Size: 1-1/4
  • Port Type: Full
  • Pressure Rating: 600
  • Series: T-1001
  • Softgoods Material: TFM/PTFE
  • Temperature Rating: 250
  • Trim Material: Brass Stem and PTFE Seat
  • Type: 1-Piece

LEGEND 1-Piece Ball Valve, Series: T-1001, 1-1/4 in Nominal, FNPT x IPS, 600 psi, 250 deg F, Full Port, Media: Oil/Steam/Water, Lever Handle Actuator, Brass Ball, Brass Body, Brass Trim, TFM PTFE Thrust Seat, Thrust Washer, Chrome Plated, Import

The 1001 Series Full Port Ball Valves are Maintenance-Free because the stem seals with two FKM O-rings instead of the traditional gland follower or packing gland design. No call backs are necessary to tighten a packing nut. The bottom loaded stem is blowout proof and includes a PTFE thrust washer that reduces friction and makes for easier actuation. The valve body, end adaptor and cavity ball are forged brass for lighter weight and greater durability, resulting in less torque necessary to actuate the valve and longer life for the seats. The steel handle is Dacromet® coated and will not corrode in aggressive environments. Every valve is manufactured to precise tolerances in a completely automated ISO certified factory and 100% pressure tested. The 1001 Series of ball valves are offered in a variety of configurations for residential, commercial and industrial applications. The T/S-1001 is constructed of UNS C37700 forged brass. The T/S-1001NL is constructed of no lead binary brass alloy.

QTY
  • Features
  • Videos
  • Anti-corrosive Dacromet® coated handle tamper-evident Dacromet® coated nut, TFM® anti-friction washer, forged brass stem, dual FKM o-rings, forged brass end adapter, TFM® seat, one-piece chrome plated forged brass cavity ball, UNS C37700 forged brass body
  • Steel handle is Dacromet® coated and will not corrode in aggressive environments
  • Valve body, end adaptor and cavity ball are forged brass for lighter weight and greater durability, resulting in less torque necessary to actuate the valve and longer life for the seats
  • O-ring stem design, lighter weight and durable forged no lead brass body, blow-out proof stem, PTFE seats for improved wear
  • Does not require any additional steps to solder, as compared to traditional brass valves
  • Bottom loaded stem is blowout proof and includes a PTFE thrust washer that reduces friction and makes for easier actuation
  • CSA certified for use with natural, manufactured, mixed, liquid petroleum and lp gas air mixtures
  • Maintenance free valve
  • Standard/Approvals: ANSI/ASME B1.20.1, CSA Certified, FM Approved, MSS SP-110, UL Listed 44R8, UL Listed 757X
  • WARRANTY: 5/25 Years
