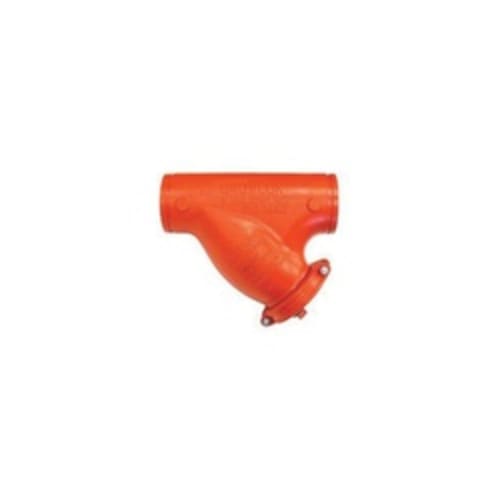

Gruvlok® 0766601033 FIG 768G Wye Strainer With 304 Stainless Steel Screen, 4 in Nominal, 14-1/4 in OAL, Grooved Connection, EPDM Softgoods, Import

223053 MFG #: 0766601033
$4,111.82 / ea
Gruvlok® 0766601033 FIG 768G Wye Strainer With 304 Stainless Steel Screen, 4 in Nominal, 14-1/4 in OAL, Grooved Connection, EPDM Softgoods, Import
  • Blow-Off Size: 1
  • Connection Type: Grooved
  • Domestic/Import: Import
  • Finish: Painted
  • Grade: 65-45-12
  • Nominal Size: 4
  • Overall Length: 14-1/4
  • Series: FIG 768G
  • Body Material: Ductile Iron
  • Softgoods Material: EPDM

Gruvlok® Wye Strainer, Series: FIG 768G, 4 in Nominal, 14-1/4 in Overall Length, Grooved, 1 in Blow-Off, EPDM, Ductile Iron Body, Painted, 65-45-12 Grade, Import

Grooved-end Wye-Strainers are designed to strain debris and foreign matter from piping systems and thus provide inexpensive protection for costly pumps, meters and other components. The Strainer can be installed quickly and easily with two mechanical coup

QTY
Add to List
  • Features
  • 300 psi working pressure
  • EPDM gasket
  • Standard/Approvals: ASTM A-536 Grade 65-45-12 Body|ASTM A-536 Grade 65-45-12 End Cap|ASTM A-536 Grade 65-45-12 Coupling|ASTM A-240 Screen
  • INCLUDES: Ductile Iron End Cap, Ductile Iron Coupling, EPDM Gasket
