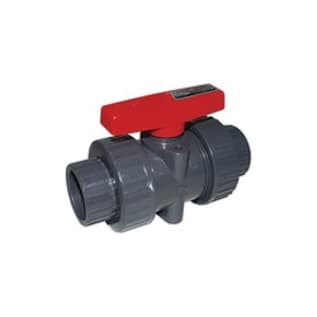

LEGEND 201-207 T/S-603 True Union Ball Valve, 1-1/2 in Nominal, FNPT End Style, UPVC Body, Full Port, EPDM Softgoods, Import
LEGEND True Union Ball Valve, Series: T/S-603, 1-1/2 in Nominal, FNPT, 150 psi, 140 deg F, Full Port, T-Handle Actuator, UPVC Ball, 6-3/4 in Inlet to Outlet Length, UPVC Body, UPVC Stem and PTFE Seat Trim, EPDM, Gray, 5.38 in H, Import
Documents
- ABS handle UPVC end adapters/union nuts/seat carrier, EPDM union O-Rings/carrier O-Ring
- Full ports allow maximum flow and minimum pressure drop or turbulence
- Ball valves are constructed of ASTM D1784 virgin UPVC resin
- Unique double union, single bayonet-style lock facilitates ease of repair and/or maintenance by allowing removal of the valve body from the pipeline
- In-line, one way flow style
- EPDM stem O-ring
- WARRANTY: 5/25 Years
LEGEND True Union Ball Valve, Series: T/S-603, 1-1/2 in Nominal, FNPT, 150 psi, 140 deg F, Full Port, T-Handle Actuator, UPVC Ball, 6-3/4 in Inlet to Outlet Length, UPVC Body, UPVC Stem and PTFE Seat Trim, EPDM, Gray, 5.38 in H, Import
Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.
- Brand:Â LEGENDActuator Type:Â T-HandleBall Material:Â UPVCBody Material:Â UPVCColor:Â GrayDimensions:Â 5.38 in HDomestic/Import:Â ImportEnd Style:Â FNPTInlet to Outlet Length:Â 6-3/4Nominal Size:Â 1-1/2Port Type:Â FullPressure Rating:Â 150Series:Â T/S-603Softgoods Material:Â EPDMTemperature Rating:Â 140Trim Material:Â UPVC Stem and PTFE Seat
LEGEND 201-207 T/S-603 True Union Ball Valve, 1-1/2 in Nominal, FNPT End Style, UPVC Body, Full Port, EPDM Softgoods, Import
LEGEND True Union Ball Valve, Series: T/S-603, 1-1/2 in Nominal, FNPT, 150 psi, 140 deg F, Full Port, T-Handle Actuator, UPVC Ball, 6-3/4 in Inlet to Outlet Length, UPVC Body, UPVC Stem and PTFE Seat Trim, EPDM, Gray, 5.38 in H, Import
