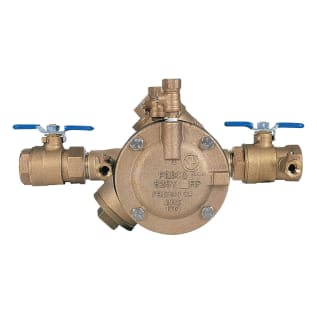

Febco® 825EBV LF825Y Y-Pattern Reduced Pressure Zone Assembly, 1 in Nominal, NPT End Style, Quarter-Turn Ball Valve, Bronze Body, Import
Febco®, 825EBV, Reduced Pressure Zone Assembly, Y-Pattern, Series: LF825Y, 1 in Nominal, NPT End Style, 175 psi Pressure, 32 to 140 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Full Port, Bronze Body, 12-3/4 in L Dimensions, Import
- Stainless steel spring
- Nitrile elastomers
- Ultimate mechanical protection of potable water, against hazards of cross-connection contamination
- Modular relief valve for easy maintenance
- Simple service procedures, all internal parts serviceable in line
- All internal parts serviceable in line
- Low head loss for optimum performance
- Internal relief valve pressure sensing passages
- Replaceable seat rings for longer valve life
- 350 psi hydrostatic test pressure
- Standard/Approvals: Approved By The Foundation For Cross-Connection Control And Hydraulic Research At The University Of Southern California|ANSI/ASME B1.20.1|ASSE 1013|AWWA C511|CSA B64.4|UPC Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- INCLUDES: Spring Loaded "Y" Pattern Check Valves and (1) Hydraulically Dependent Differential Relief Valve
- WARRANTY: 1 year Limited
Febco®, 825EBV, Reduced Pressure Zone Assembly, Y-Pattern, Series: LF825Y, 1 in Nominal, NPT End Style, 175 psi Pressure, 32 to 140 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Full Port, Bronze Body, 12-3/4 in L Dimensions, Import
The FEBCO Series 825Y Reduced Pressure Zone Assemblies are used to protect against high hazard (toxic) fluids in water services to industrial plants, hospitals, morgues, mortuaries and chemical plants. These valves are designed to protect drinking water supplies from dangerous cross-connections in accordance with national plumbing codes and water authority requirements for non-potable service applications such as irrigation, fireline or industrial processing. They are also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection.
- Brand: Febco®Ball Valve/Gate Valve type: Quarter-Turn Ball ValveBody Material: BronzeDimensions: 12-3/4 in LDomestic/Import: ImportEnd Style: NPTNominal Size: 1Port Type: FullPressure Rating: 175Series: 825Y-QTTemperature Rating: 32 to 140Type: Y-Pattern
