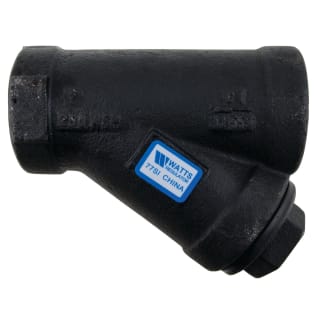

WATTS® 0220081 77SI Wye Strainer With #20 Mesh Screen, 2 in Nominal, 7 in OAL, FNPT Connection, Graphite Softgoods, Import
WATTS® Wye Strainer, Series: 77SI, 2 in Nominal, 7 in Overall Length, FNPT, 3/4 in NPT Blow-Off, Graphite, Cast Iron Body, Import
- Threaded connections
- Machined seat allows self-aligning screen to help ensure a perfect fit
- Non-asbestos gasket and blow-down connection for greater confidence
- The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
- Wye pattern
- Standard/Approvals: ASSE Listed|FM Approved|UL Listed|ULC Listed|USC Certified
- INCLUDES: Retainer Cap
- WARRANTY: 1 year Limited
WATTS® Wye Strainer, Series: 77SI, 2 in Nominal, 7 in Overall Length, FNPT, 3/4 in NPT Blow-Off, Graphite, Cast Iron Body, Import
Series 77SI Cast Iron, Wye-Pattern Strainers feature a wye-pattern, iron body with NPT threaded connections, stainless steel screen, threaded iron retainer cap with non-asbestos gasket and blow-down connection. Series 77SI has machined seat that allows the screen to be self-aligning to assure a perfect fit. Maximum Pressure (non shock): 400psi (27.6 bar) at 150 deg F (66 deg C) WOG, 250psi (17.2 bar) at 406 deg F (208 deg C) WSP.
- Brand: WATTS®Blow-Off Size: 3/4 in NPTConnection Type: FNPTDomestic/Import: ImportNominal Size: 2Overall Length: 7Series: 77SIBody Material: Cast IronSoftgoods Material: Graphite
