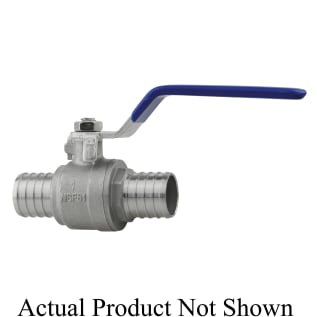

Boshart Industries SSPEXBV-07 2-Piece Ball Valve, 3/4 in Nominal, PEX End Style, 304 Stainless Steel Body, NBR Rubber Softgoods, Import
Boshart Industries Ball Valve, Lead Free 2-Piece, Series: SSPEXBV Series, 3/4 in Nominal, PEX End Style, 600 psi CWP Pressure, -40 to 200 deg F, Blue Plastic Sleeve Handle Actuator, 201 Stainless Steel Ball, 304 Stainless Steel Body, PTFE/Zinc Plated Steel Trim, NBR Rubber Softgoods, 4.55 in L x 1.8 in W x 1 in H, Import
Documents
- CWP - cold working pressure, is an indication of the pressure rating for valves at a temperature range of up to +100 deg F (37 deg C)
- Two piece investment cast body
- Blow-out proof stem
- Stainless steel handle with blue plastic sleeve
- No lead <0.25% pb by weighted average
- Plastic sleeve/PTFE seat/zinc plated steel stem/spring washer/PTFE seat
- Nitrile rubber stem O-ring
- Standard/Approvals: ASTM F876/F2769/F2023|cUPC Listed|NSF/ANSI 61/372|CSA Approved
Boshart Industries Ball Valve, Lead Free 2-Piece, Series: SSPEXBV Series, 3/4 in Nominal, PEX End Style, 600 psi CWP Pressure, -40 to 200 deg F, Blue Plastic Sleeve Handle Actuator, 201 Stainless Steel Ball, 304 Stainless Steel Body, PTFE/Zinc Plated Steel Trim, NBR Rubber Softgoods, 4.55 in L x 1.8 in W x 1 in H, Import
Boshart Industries Stainless Steel Ball Valves come in 2 different materials to suit a variety of applications. 304 CF8 Stainless Steel can be used in conventional situations, where 316 CF8M Stainless Steel can be used in more demanding environments.
- Brand:Â Boshart Industries
Boshart Industries SSPEXBV-07 2-Piece Ball Valve, 3/4 in Nominal, PEX End Style, 304 Stainless Steel Body, NBR Rubber Softgoods, Import
Boshart Industries Ball Valve, Lead Free 2-Piece, Series: SSPEXBV Series, 3/4 in Nominal, PEX End Style, 600 psi CWP Pressure, -40 to 200 deg F, Blue Plastic Sleeve Handle Actuator, 201 Stainless Steel Ball, 304 Stainless Steel Body, PTFE/Zinc Plated Steel Trim, NBR Rubber Softgoods, 4.55 in L x 1.8 in W x 1 in H, Import
