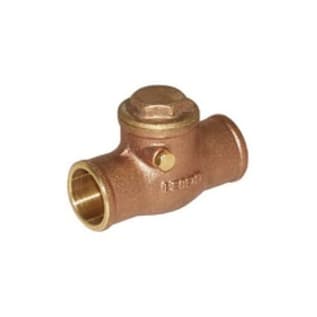

LEGEND 105-203 S-451 Swing Check Valve, 1/2 in Nominal, C End Style, Cast Brass Body, Import
LEGEND Swing Check Valve, Series: S-451, 1/2 in Nominal, C, 200 psi CWP, Low Lead Compliance: No, Full Port, 1.61 in Inlet to Outlet Length, 1-1/2 in Top to Inlet Center, Cast Brass Body, Forged Brass Trim, Import
Documents
- Durable, full-pattern cast brass body
- Large, integral seat and disc sealing surfaces
- Forged brass hinge pin assures smooth, non-binding disc operation
- T-pattern body permits either vertical (upward flow only) or horizontal (assembly cap upright) installations
- Forged brass disc
- Standard/Approvals: ANSI/ASME B16.18|ASTM B584 UNS C85700 Body|ASTM B124 UNS C37700 Disc
- WARRANTY: 5 Years
LEGEND Swing Check Valve, Series: S-451, 1/2 in Nominal, C, 200 psi CWP, Low Lead Compliance: No, Full Port, 1.61 in Inlet to Outlet Length, 1-1/2 in Top to Inlet Center, Cast Brass Body, Forged Brass Trim, Import
Legend models T-451/S-451 check valves are constructed of heavy duty brass. They have a screwed cap, swing type disc and integral seat. They prevent backflow while offering full flow performance with a minimum of turbulence or pressure loss. Recommended for residential and commercial applications.
- Brand:Â LEGENDBody Material:Â Cast BrassDomestic/Import:Â ImportEnd Style:Â CInlet to Outlet Length:Â 1.61Low Lead Compliance:Â NoNominal Size:Â 1/2Port Type:Â FullPressure Rating:Â 200 psi CWPSeries:Â S-451Top to Inlet Center:Â 1-1/2Trim Material:Â Forged Brass
