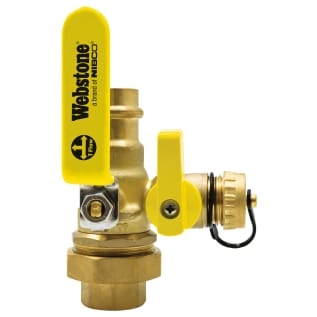

Webstone Ball Drain® H-80433W 8043W Pro-Pal® Union Ball Valve With Handle and Pro-Pal® Union Ball Drain, 3/4 in Nominal, Press x FNPT Union End Style, Brass Body, Full Port, EPDM Softgoods, Import
Webstone Ball Drain® Union Ball Valve, Series: 8043W Pro-Pal®, 3/4 in Nominal, Press x FNPT Union, 250 psi, Full Port, Media: Gas/Oil/Water, 3/4 in Orifice, Brass Ball, 4.32 in Inlet to Outlet Length, 2.63 in Top to Inlet Center, Brass Body, Brass/PTFE Trim, EPDM, Import
- Eliminates Assembly Needed to Isolate and Drain Any Portion of a Piped System
- Reversible Handle for Added Versatility
- Exclusive Adjustable Flow Path Allow for Draining From Either Side of the Ball
- Union Connection Allows for Any System Appliance to Be Easily Disconnected for Replacement
- Saves 45 min
- Replaces 6 Components
- Standard/Approvals: NSF/ANSI 61-G/372|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- INCLUDES: Hi-Flow Hose Drain and Adjustable Packing Gland
- WARRANTY: Limited Lifetime
Webstone Ball Drain® Union Ball Valve, Series: 8043W Pro-Pal®, 3/4 in Nominal, Press x FNPT Union, 250 psi, Full Port, Media: Gas/Oil/Water, 3/4 in Orifice, Brass Ball, 4.32 in Inlet to Outlet Length, 2.63 in Top to Inlet Center, Brass Body, Brass/PTFE Trim, EPDM, Import
Pro-Pal valves are your best choice for efficient installation and system operation and for helping to control costs. Pro-Pal valves combine commonly used components into a single forged brass alternatives that will save time and space in any installation. Instead of just building your next piping system, innovate it with Pro-Pal Series Valves. Designed for use with water, oil, glycol mix in residential or commercial residential plumbing, commericial plumbing, heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.
- Brand: Webstone
Webstone Ball Drain® H-80433W 8043W Pro-Pal® Union Ball Valve With Handle and Pro-Pal® Union Ball Drain, 3/4 in Nominal, Press x FNPT Union End Style, Brass Body, Full Port, EPDM Softgoods, Import
Webstone Ball Drain® Union Ball Valve, Series: 8043W Pro-Pal®, 3/4 in Nominal, Press x FNPT Union, 250 psi, Full Port, Media: Gas/Oil/Water, 3/4 in Orifice, Brass Ball, 4.32 in Inlet to Outlet Length, 2.63 in Top to Inlet Center, Brass Body, Brass/PTFE Trim, EPDM, Import
