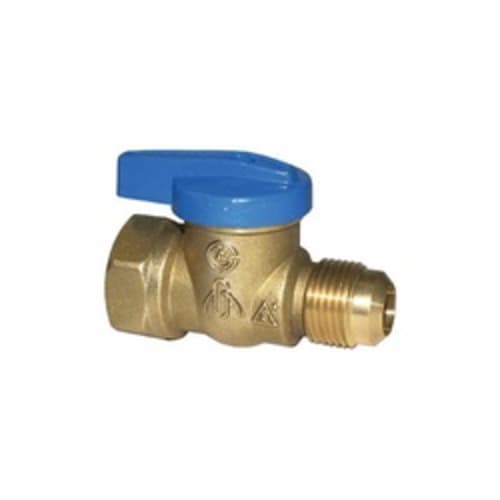

LEGEND 102-113 T-3000 1-Piece Ball Valve, 1/2 in Nominal, Flare x FNPT End Style, Brass Body, Synthetic Fiber/NBR Softgoods, Import
LEGEND Ball Valve, 1-Piece, Series: T-3000, 1/2 in Nominal, Flare x FNPT, 175 psi, Media: Gas, Quarter Turn Handle Actuator, Forged Brass Ball, 2.46 in Inlet to Outlet Length, Brass Body, Brass Stem Trim, Synthetic Fiber/NBR, Polished Chrome, Blue, 1.82 in H, Import
Documents
- Forged brass stem retainer bushing, nitrile (NBR) rubber seats/stem O-Ring, commercial grade synthetic fiber thrust washer, ASTM B159 phosphor bronze wire stem retainer clip, commercial grade, die-cast coated aluminum handle zinc plated steel handle screw
- Chrome plated ball and soft seats resist contamination build-up and offer a positive seal in low or moderate pressure gas applications
- Patented 1-Piece forged brass body eliminates the possibility of seam leaks common to 2-piece body designs
- Without the grease-seal Blow-out common to plug-type gas cocks
- Quarter-turn, ball-type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks
- CSA certified for use with natural, manufactured, mixed, liquid petroleum and lp/gas air mixtures
- Synthetic fiber thrust washer and NBR stem O-ring
- Standard/Approvals: ANSI/ASME B1.20.1|CSA Certified|UL Listed 757X
- WARRANTY: 5/25 Years
LEGEND Ball Valve, 1-Piece, Series: T-3000, 1/2 in Nominal, Flare x FNPT, 175 psi, Media: Gas, Quarter Turn Handle Actuator, Forged Brass Ball, 2.46 in Inlet to Outlet Length, Brass Body, Brass Stem Trim, Synthetic Fiber/NBR, Polished Chrome, Blue, 1.82 in H, Import
Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.
- Brand:Â LEGENDActuator Type:Â Quarter Turn HandleBall Material:Â Forged BrassBody Material:Â BrassColor:Â BlueDimensions:Â 1.82 in HDomestic/Import:Â ImportEnd Style:Â Flare x FNPTFinish:Â Polished ChromeInlet to Outlet Length:Â 2.46Media:Â GasNominal Size:Â 1/2Pressure Rating:Â 175Series:Â T-3000Softgoods Material:Â Synthetic Fiber/NBRTrim Material:Â Brass StemType:Â 1-Piece
LEGEND 102-113 T-3000 1-Piece Ball Valve, 1/2 in Nominal, Flare x FNPT End Style, Brass Body, Synthetic Fiber/NBR Softgoods, Import
LEGEND Ball Valve, 1-Piece, Series: T-3000, 1/2 in Nominal, Flare x FNPT, 175 psi, Media: Gas, Quarter Turn Handle Actuator, Forged Brass Ball, 2.46 in Inlet to Outlet Length, Brass Body, Brass Stem Trim, Synthetic Fiber/NBR, Polished Chrome, Blue, 1.82 in H, Import
