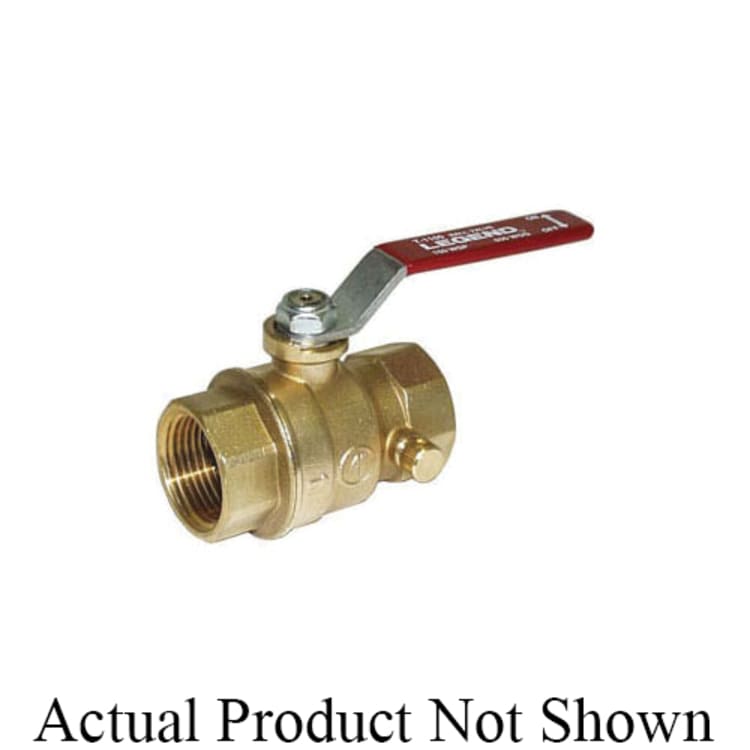

LEGEND 101-504 T-1100 Specialty Ball Valve With Drain, 3/4 in Nominal, FNPT End Style, Brass Body, Full Port, TFM/PTFE Softgoods, Import
LEGEND Specialty Ball Valve, Series: T-1100, 3/4 in Nominal, FNPT, 500 psi, 28.6 gpm, Full Port, Media: Gas/Oil/Water, Lever Operated Actuator, Brass Ball, 2.35 in Inlet to Outlet Length, 1.87 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, TFM/PTFE, Polished Chrome, Import
Documents
- Dacromet® coated steel handle nut/handle TFM® PTFE anti-friction washer/thrust washer/seat, fluorocarbon O-Rings, chrome plated forged brass stem/ball, forged brass body/end adapter/waste cap
- Waste drain allows line to be drained for maintenance or to prevent freeze-up
- A more durable alternative to conventional stop and waste valves
- Bottom loaded, blow-out proof stem
- TFM/PTFE thrust washer
- Standard/Approvals: ANSI/ASME B1.20.1
- WARRANTY: 5/25 Years
LEGEND Specialty Ball Valve, Series: T-1100, 3/4 in Nominal, FNPT, 500 psi, 28.6 gpm, Full Port, Media: Gas/Oil/Water, Lever Operated Actuator, Brass Ball, 2.35 in Inlet to Outlet Length, 1.87 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, TFM/PTFE, Polished Chrome, Import
Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.
- Brand:Â LEGENDActuator Type:Â Lever OperatedBall Material:Â BrassBody Material:Â BrassDomestic/Import:Â ImportEnd Style:Â FNPTFinish:Â Polished ChromeFlow Rate:Â 28.6Inlet to Outlet Length:Â 2.35Media:Â Gas/Oil/WaterNominal Size:Â 3/4Port Type:Â FullPressure Rating:Â 500Series:Â T-1100Softgoods Material:Â TFM/PTFETop to Inlet Center:Â 1.87Trim Material:Â Brass Stem and PTFE Seat
