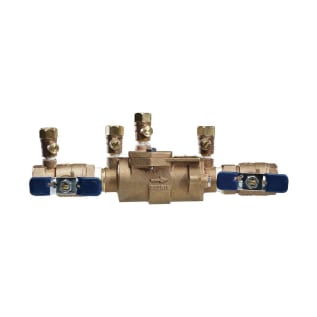

Febco® 1116 850, 850-QT DC In-Line Small Diameter Double Check Valve Assembly, 2 in, NPT, Quarter-Turn Ball Valve, Bronze Body

155358 MFG #: 1116
$1,100.00 / ea
  • Ball Valve/Gate Valve type: Quarter-Turn Ball Valve
  • Body Material: Bronze
  • Dimensions: 17-5/8 in L
  • Domestic/Import: Import
  • End Style: NPT
  • Nominal Size: 2
  • Pressure Rating: 175
  • Series: 850
  • Temperature Rating: 32 to 140
  • Type: In-Line Small Diameter

Febco® Double Check Valve Assembly, In-Line Small Diameter, Series: 850, 2 in Nominal, NPT, 175 psi, 32 to 140 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Bronze Body, 17-5/8 in L

This 2 in small diameter double check valve assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs and replaceable check discs and seats.

  • Features
  • Modular compact design
  • Replaceable seats and discs
  • Top entry
  • 350 psi hydrostatic test pressure
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • Standard/Approvals: Approved By The Foundation For Cross-Connection Control And Hydraulic Research At The University Of Southern California|ANSI/ASME B1.20.1|ANSI/AWWA C510-92|ASSE 1015|CSA B64.5 | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
