Sharkbite®

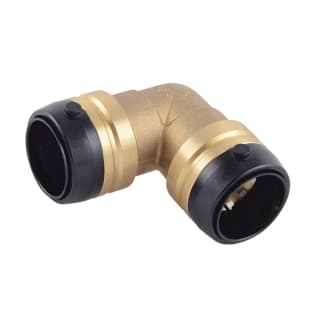

Sharkbite® UXL0235 Large Diameter Elbow, 1-1/4 in Nominal, Push-to-Connect End Style, DZR Brass, Domestic
Sharkbite® Elbow, Large Diameter, Fitting/Connector Type: 90 deg Elbow, 1-1/4 in Nominal, Push-to-Connect, 200 psi, 200 deg F, DZR Brass, Natural Brass/Polished Chrome, Domestic
- Compatible with PEX, copper, CPVC, PE-RT and HDPE pipe
- Approved to be used underground and behind walls without access panels
- No special tools, crimping, glue or soldering is needed
- Can be installed in wet lines
- Large diameter fittings (1-1/4 to 2 in) require a stiffener (sold separately) when connecting to PEX pipe
- Remove using a disconnect clip or disconnect tongs (both sold separately)
- For PEX applications, stiffeners are sold separately
- Standard/Approvals: ASSE 1061|ASTM E119|ASTM E84|CAN/CSA B125.3|cUPC Listed|IPC Listed|NSF/ANSI 372|NSF/ANSI/CAN 61|UL 263|ULC S101|ULC S102.2|UPC Listed|PROP65: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm - www.P65Warnings.ca.gov
- WARRANTY: 25 years
Sharkbite® Elbow, Large Diameter, Fitting/Connector Type: 90 deg Elbow, 1-1/4 in Nominal, Push-to-Connect, 200 psi, 200 deg F, DZR Brass, Natural Brass/Polished Chrome, Domestic
Used to make 90 deg connection between two pieces of pipe. Compatible with PEX, copper, CPVC, PE-RT and HDPE pipes.
- Brand: Sharkbite®Domestic/Import: DomesticEnd Style: Push-to-ConnectFitting/Connector Type: 90 deg ElbowMaterial: DZR BrassNominal Size: 1-1/4Pressure Rating: 200Temperature Rating: 200Type: Large DiameterFinish: Natural Brass/Polished Chrome
