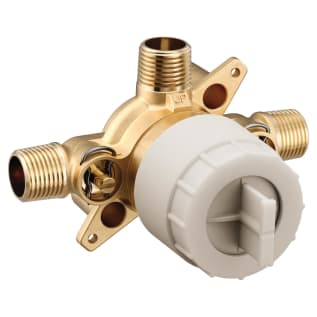

Moen® M-Pact™ M-Core™ U130CIS 3-Port Rough-In Valve, 1/2 in CC/IPS Inlet x 1/2 in CC/IPS Outlet, 200 psi Air/300 psi Water Pressure, Brass Body, Domestic

Moen® M-Pact™ M-Core™ Rough-In Valve, 3-Port, 1/2 in CC/IPS Inlet Connection, 1/2 in CC/IPS Outlet, 200 psi Air/300 psi Water Pressure, Wall Mounting, Brass Body, Domestic

Moen®

Moen® M-Pact™ M-Core™ U130CIS 3-Port Rough-In Valve, 1/2 in CC/IPS Inlet x 1/2 in CC/IPS Outlet, 200 psi Air/300 psi Water Pressure, Brass Body, Domestic

Moen® M-Pact™ M-Core™ Rough-In Valve, 3-Port, 1/2 in CC/IPS Inlet Connection, 1/2 in CC/IPS Outlet, 200 psi Air/300 psi Water Pressure, Wall Mounting, Brass Body, Domestic

Please sign in or register to see your price and availability.

QTY

Documents

Catalog

Specification Sheet

Instruction/Installation Manual

Line Drawing

Built on the Moen® M-Pact™ common valve system, allowing you to update the faucet style in the future without replacing any plumbing

M-CORE valves, with 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home

Feature volume control, allowing you to adjust the flow of water for greater functionality

M-CORE 3-Series offers a full line of finish, style and platform options for every shower configuration

Offers design flexibility to choose your trim after the valve installation, so you can take your time with your style and finish selections

M-CORES adaptability allows the valves to be roughed-in with the option of functionality and style changes that dont require removing or changing the valve(s)

Features an integrated mounting bracket that secures the valve directly to a brace, streamlining the installation process and saving time

M-CORE mixing and transfer valves are available in several inlet and outlet plumbing options to meet the needs of the installers

Standard/Approvals: ASME A112.18.1|CSA B125.1

INCLUDES: 1/4 Turn Stop and Test Plug

WARRANTY: Lifetime Limited Against Leaks, Drips and Finish D

Moen® M-Pact™ M-Core™ Rough-In Valve, 3-Port, 1/2 in CC/IPS Inlet Connection, 1/2 in CC/IPS Outlet, 200 psi Air/300 psi Water Pressure, Wall Mounting, Brass Body, Domestic

Brand: Moen®

Body Material: Brass

Domestic/Import: Domestic

Inlet Connection: 1/2 in CC/IPS

Mounting Type: Wall

Outlet Connection: 1/2 in CC/IPS

Pressure Rating: 200 psi Air/300 psi Water

Type: 3-Port
