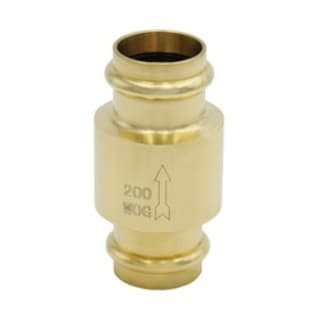

LEGEND LEGENDPress™ 105-457NL P-450NL Forged In-Line Check Valves, 1-1/2 in Nominal, Press End Style, Brass Body, Import

1531401 MFG #: 105-457NL
$82.71 / ea
  • Body Material: Brass
  • Dimensions: 2.62 in W
  • Domestic/Import: Import
  • End Style: Press
  • Inlet to Outlet Length: 4.69
  • Media: Water
  • Nominal Size: 1-1/2
  • Pressure Rating: 200 psi CWP
  • Series: P-450NL
  • Softgoods Material: EPDM
  • Temperature Rating: Up to 180
  • Trim Material: Stainless Steel/EPDM
  • Type: Forged

LEGEND LEGENDPress™ In-Line Check Valves, Lead Free Forged, Series: P-450NL, 1-1/2 in Nominal, Press, 200 psi CWP, Up to 180 deg F, Media: Water, 4.69 in Inlet to Outlet Length, Brass Body, Stainless Steel/EPDM Trim, EPDM Softgoods, 2.62 in W, Import

QTY
  • Features
  • Large, integral seat and disc sealing surfaces assure positive closure
  • EPDM seat for quiet operation, spring loaded stem disc
  • Can be installed in both vertical and horizontal positions
  • Manufactured for installation onto ASTM B88 types K, L and M hard drawn copper tubing
  • Coiled (annealed) soft copper tubing is not recommended for use with this product
  • VUS-pattern press-connection tubing sockets
  • Trim material - stainless steel spring, EPDM seat
  • Softgoods material - EPDM press O-ring/body O-ring
  • Standard/Approvals: NSF/ANSI 61/372|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
  • WARRANTY: 5 years
