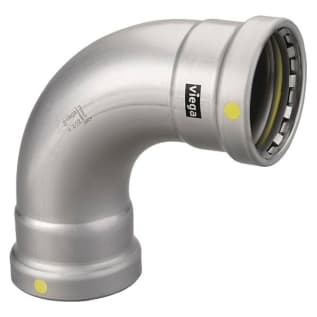

MegaPress® 28600 Model 6616XL Elbow, 2-1/2 in Nominal, Press End Style, Carbon Steel, Import
MegaPress® Elbow, Series: Model 6616XL, Fitting/Connector Type: 90 deg Elbow, 2-1/2 in Nominal, Press, SCH 40/STD, 125 psi for Fuel Gas/200 psi for Other Applications, -40 to 180 deg F, Carbon Steel, Nickel Plated/Zinc Plated, Import
- Approved for more applications than any other carbon steel pipe press fitting system
- Suitable for use with ASTM SCH 5 to 40 carbon steel pipe in accordance with AHJ requirements
- Corrosion resistant zinc nickel coating
- Nearly 150 engineered fitting configurations from 2-1/2 to 4 in
- Approved for underground applications, in accordance with code and local AHJ
- The same hanger and support requirements as threaded systems
- Viega Smart Connect® technology helps easily identify unpressed connections and provides installers added confidence in the integrity of connections
- Standard/Approvals: ASTM/ASME B31.1/B31.3/B31.9/ANSI LC 4a|ABS Standard|ASME B31|ASTM A53/A106/A135/A795|CRN: 0A14541.5 A/B/C|CSA: ANSI LC 4a/CSA 6.32a|DNV-GL|IAPMO: ANSI LC 4a/CSA 6.32a|IAPMO National Standard Plumbing Code (NSPC)|IAPMO Uniform Mechanical Code (UMC)|IAPMO Uniform Plumbing Code (UPC)|ICC-ES: ANSI LC 4a/CSA 6.32a|ICC International Fuel Gas Code (IFGC)|ICC International Mechanical Code (IMC)|ICC International Residential Code (IRC)|Lead Law Compliant|Lloyd's Register CAN/CSA-B149.1|NACE RP0169-2002|NFPA 54/Z223: National Fuel Gas Code|NFPA 58: Liquefied Petroleum Gas Code|UMC Chapter 13 Section 1312.1.3|UPC Listed
- INCLUDES: HNBR Sealing Element
- WARRANTY: 10 years
MegaPress® Elbow, Series: Model 6616XL, Fitting/Connector Type: 90 deg Elbow, 2-1/2 in Nominal, Press, SCH 40/STD, 125 psi for Fuel Gas/200 psi for Other Applications, -40 to 180 deg F, Carbon Steel, Nickel Plated/Zinc Plated, Import
Viega MegaPress® is a carbon steel, cold press system designed for use in compressed air, fuel gas, and heating oil applications. Viega MegaPress® fittings are designed for use in piping systems utilizing ASTM A53, A106, A135 and A795 SCH 5 to SCH 40/STD carbon steel pipe. Viega MegaPress® fittings for fuel gas or fuel oil systems shall be used with ASTM A53 SCH 40/STD carbon steel pipe. MegaPress® is CSA LC4 approved for fuel oil and fuel gas installations.
- Brand: MegaPress®Domestic/Import: ImportEnd Style: PressFitting/Connector Type: 90 deg ElbowMaterial: Carbon SteelNominal Size: 2-1/2Pressure Rating: 125 psi for Fuel Gas/200 psi for Other ApplicationsSeries: Model 6616XLTemperature Rating: -40 To 180Finish: Nickel Plated/Zinc PlatedSchedule Rating: SCH 40/STD
