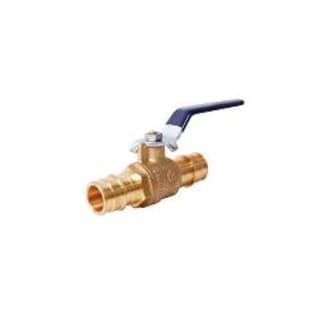

LEGEND 101-560NL T-1960NL Ball Valve, 3 in Nominal, PEX F1960 End Style, DZR Forged Brass Body, NBR/PTFE Softgoods, Import
LEGEND Ball Valve, Series: T-1960NL, 3 in Nominal, PEX F1960 End Style, 400 psi CWP Non Shock Pressure, 2.44 in Orifice, Handle Actuator, 304 Stainless Steel Ball, 10-3/4 in Inlet to Outlet Length, 4-1/4 in Top to Inlet Center, DZR Forged Brass Body, Stainless Steel/PTFE Trim, NBR/PTFE Softgoods, Domestic/Import: Import
Documents
- Dezincification-resistant (DZR) forged brass resists corrosion from exposure to a wide variety of water conditions
- Bottom loaded, blowout proof stem features a dual seal PTFE packing and EPDM rubber O-ring design, assuring positive sealing under a multitude of conditions
- Self-cleaning stainless steel ball resists mineral build-up and scaling
- Designed for use with cold expansion rings that are manufactured in compliance with ASTM F1960
- Trim material - stainless steel stem, PTFE seat
- Softgoods material - NBR rubber O-ring, PTFE packing
- Standard/Approvals: NSF/ANSI 14/61/372|UNS C46500|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
- WARRANTY: 5 years
LEGEND Ball Valve, Series: T-1960NL, 3 in Nominal, PEX F1960 End Style, 400 psi CWP Non Shock Pressure, 2.44 in Orifice, Handle Actuator, 304 Stainless Steel Ball, 10-3/4 in Inlet to Outlet Length, 4-1/4 in Top to Inlet Center, DZR Forged Brass Body, Stainless Steel/PTFE Trim, NBR/PTFE Softgoods, Domestic/Import: Import
- Brand:Â LEGENDActuator Type:Â HandleBall Material:Â 304 Stainless SteelBody Material:Â DZR Forged BrassDomestic/Import:Â ImportEnd Style:Â PEX F1960Inlet to Outlet Length:Â 10-3/4Nominal Size:Â 3Orifice Size:Â 2.44Pressure Rating:Â 400 psi CWP Non ShockSeries:Â T-1960NLSoftgoods Material:Â NBR/PTFETop to Inlet Center:Â 4-1/4Trim Material:Â Stainless Steel/PTFE
LEGEND 101-560NL T-1960NL Ball Valve, 3 in Nominal, PEX F1960 End Style, DZR Forged Brass Body, NBR/PTFE Softgoods, Import
LEGEND Ball Valve, Series: T-1960NL, 3 in Nominal, PEX F1960 End Style, 400 psi CWP Non Shock Pressure, 2.44 in Orifice, Handle Actuator, 304 Stainless Steel Ball, 10-3/4 in Inlet to Outlet Length, 4-1/4 in Top to Inlet Center, DZR Forged Brass Body, Stainless Steel/PTFE Trim, NBR/PTFE Softgoods, Domestic/Import: Import
