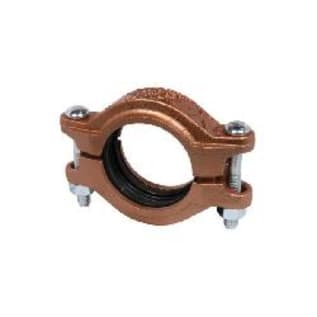

Gruvlok® SlideLOK® 0390012204 FIG 64 Coupling, 3 in Nominal, CTS End Style, Ductile Iron, Rust Inhibiting Painted
Gruvlok® SlideLOK® Coupling, Series: FIG 64, Fitting/Connector Type: Coupling, 3 in Nominal, CTS, 1-15/16 in Thickness, 6-3/4 in Length, 300 psi, Ductile Iron, Rust Inhibiting Painted, Copper, 3-1/8 in OD x 1-15/16 in W
Documents
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
- SlideLOK® pressure responsive gasket
- Gasket recommended for water service, diluted acids, alkalies solutions, oil-free air and many other chemical services, not for use in petroleum applications
- Standard/Approvals: ASTM A563 Grade 65-45-12 Heavy Hex Nuts/Housing|ASTM D2000 Gasket|NSF/ANSI 61|SAE J429 Bolts|UPC Listed
- INCLUDES: Grade EP Copper EPDM Gasket, Hex Heavy Nuts and Bolts
Gruvlok® SlideLOK® Coupling, Series: FIG 64, Fitting/Connector Type: Coupling, 3 in Nominal, CTS, 1-15/16 in Thickness, 6-3/4 in Length, 300 psi, Ductile Iron, Rust Inhibiting Painted, Copper, 3-1/8 in OD x 1-15/16 in W
The CTS SlideLOK® coupling is a ready for installation coupling designed to reduce installation time. The slide action allows for greater flexibility during installation. The patented gasket provides four separate sealing surfaces for added protection. The engineered metal-to-metal installation requirement is a quick and easy indication of proper assembly. The CTS SlideLOK® is designed to be used with copper tube sizes 2 to 8 in and produces a secure, rigid joint connection.
- Brand: Gruvlok®Color: CopperDimensions: 3-1/8 in OD x 1-15/16 in WEnd Style: CTSFinish: Rust Inhibiting PaintedFitting/Connector Type: CouplingLength: 6-3/4Material: Ductile IronNominal Size: 3Pressure Rating: 300Series: FIG 64Thickness: 1-15/16
