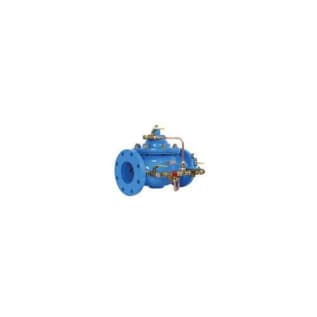

WATTS® VT200903 Classic LFF115 Globe Pattern Pressure Reducing Control Valve, 2-1/2 in Nominal, Flanged End Style, 250 psi Pressure, Ductile Iron Body, Domestic
WATTS® Pressure Reducing Control Valve, Globe Pattern, Series: Classic LFF115, 2-1/2 in Nominal, Flanged, 250 psi, 150 lb, 160 deg F, Media: Water, 11 in Inlet to Outlet Length, Ductile Iron Body, 316 Stainless Steel Trim/304 Stainless Steel Stem/302 Stainless Steel Spring Trim, Buna-N, Fusion Bonded Epoxy Coated, Domestic
- Globe Pattern
- Class 150 flanged
- Epoxy coated
- Copper tubing/brass fittings
- Simplified and efficient design is easy and economical to maintain
- Reduces a fluctuating higher upstream pressure to a constant lower downstream pressure
- Isolation cock
- Seat gasket, O-ring, quad seal, diaphragm contained in main valve repair kit
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Standard/Approvals: ASTM A536 65-45-12 Body|ASTM A276 Stem|ASTM A276 Spring|NSF 61 Finish|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- WARRANTY: Limited
WATTS® Pressure Reducing Control Valve, Globe Pattern, Series: Classic LFF115, 2-1/2 in Nominal, Flanged, 250 psi, 150 lb, 160 deg F, Media: Water, 11 in Inlet to Outlet Length, Ductile Iron Body, 316 Stainless Steel Trim/304 Stainless Steel Stem/302 Stainless Steel Spring Trim, Buna-N, Fusion Bonded Epoxy Coated, Domestic
This 2-1/2 in globe pattern class 150 flanged epoxy coated pressure reducing control valve, model 115, is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits possible damaging high inlet pressure from passing through the valve to downstream piping, isolation cocks.
- Brand: WATTS®
WATTS® VT200903 Classic LFF115 Globe Pattern Pressure Reducing Control Valve, 2-1/2 in Nominal, Flanged End Style, 250 psi Pressure, Ductile Iron Body, Domestic
WATTS® Pressure Reducing Control Valve, Globe Pattern, Series: Classic LFF115, 2-1/2 in Nominal, Flanged, 250 psi, 150 lb, 160 deg F, Media: Water, 11 in Inlet to Outlet Length, Ductile Iron Body, 316 Stainless Steel Trim/304 Stainless Steel Stem/302 Stainless Steel Spring Trim, Buna-N, Fusion Bonded Epoxy Coated, Domestic
