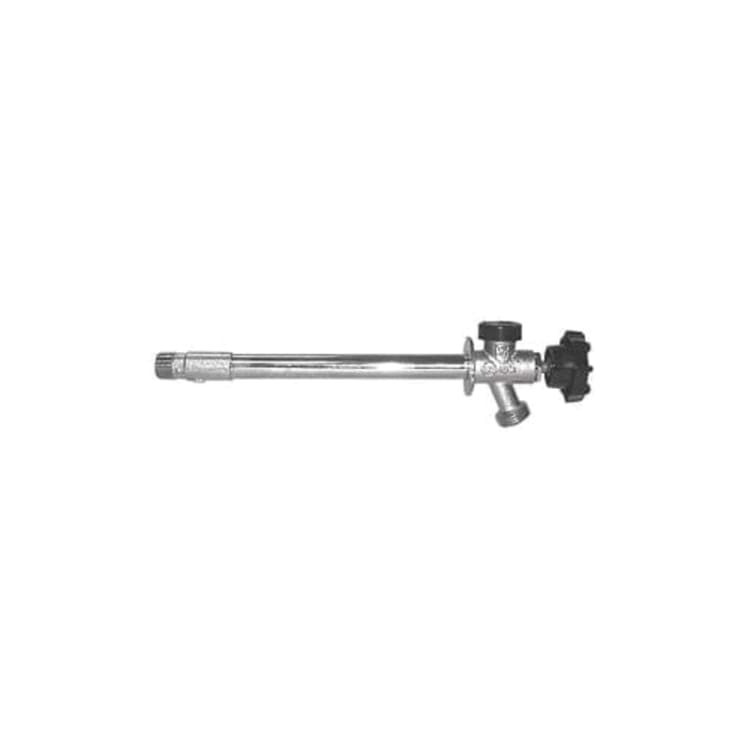

LEGEND 108-063NL T-552PNL Multi-Turn Anti-Siphon Frostfree Sillcock, 1/2 x 8 in Nominal, PEX F1960 End Style, Brass Body, Handwheel Actuator, Import
LEGEND Sillcock, Multi-Turn Anti-Siphon Frostfree, Series: T-552PNL, 1/2 x 8 in Nominal, PEX F1960 End Style, 125 psi CWP Pressure, Media: Potable Water, Brass Body, Brass/Aluminum/304 Stainless Steel Trim, Handwheel Actuator, Polished Chrome, 13.35 in L x 3.2 in H Dimensions, Import
Documents
- Durable polished chrome body offers superior corrosion resistance over unplated versions
- Extended-hub handwheel moves the operator's hands away from the sharp hose bibb threads
- A tapered sill wedge, included with each valve, eases installation onto a variety of sill types by pitching the outlet downward, to the proper 5 deg angle
- Equipped with an anti-siphon vacuum breaker and internal check valve, to prevent backflow into the potable water system
- Lead-free design is suitable for all lead-free potable water installations, in full compliance of federal public law 111-380
- The outlet orientation tab at the inlet connection, clearly shows the hose bibb outlet's position and is easier to see than a simple mark, in low-light installations
- Trim material - lead-free brass stem, aluminum identification plate, 304 stainless steel piston check spring
- Standard/Approvals: ANSI/NSF 61-9|ASSE 1019 Type A|CSA Certified|UPC/IAPMO Listed|ASTM B584 C85700|ASTM B209-1100|ASTM B135 UNS C26000|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
- WARRANTY: 5 years
LEGEND Sillcock, Multi-Turn Anti-Siphon Frostfree, Series: T-552PNL, 1/2 x 8 in Nominal, PEX F1960 End Style, 125 psi CWP Pressure, Media: Potable Water, Brass Body, Brass/Aluminum/304 Stainless Steel Trim, Handwheel Actuator, Polished Chrome, 13.35 in L x 3.2 in H Dimensions, Import
- Brand:Â LEGENDActuator Type:Â HandwheelBody Material:Â BrassDimensions:Â 13.35 in L x 3.2 in HDomestic/Import:Â ImportEnd Style:Â PEX F1960Finish:Â Polished ChromeMedia:Â Potable WaterNominal Size:Â 1/2 x 8Pressure Rating:Â 125 psi CWPSeries:Â T-552PNLTrim Material:Â Brass/Aluminum/304 Stainless SteelType:Â Multi-Turn Anti-Siphon Frostfree
