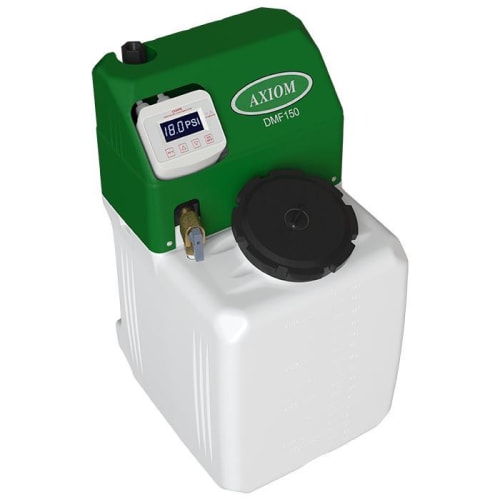

Axiom DMF150 System Feeder, 115 VAC, 18 psig Pressure, 1 gpm Flow Rate
Axiom, DMF150, System Feeder, 115 VAC, 18 psig Pressure, 1 gpm Flow Rate, 18-1/4 in H x 9-1/2 in W Dimensions
- 17 L (4.6 gal) tank for storage and mixing
- All features shown on user friendly digital display screen
- 0-45psig Pressure Setpoint with adjustable dead band
- N.O./N.C. Alert contacts and LED light enabled when low level, low pressure, or high-pressure condition
- Integrated Easy Connect Wall Mount Bracket comes with the unit
- Tilted 5" easy fill access on front of tank
- UL listed Power supply plugs into any standard 115 VAC outlet
- Diaphragm pump can run dry without damage
- No direct connection to potable water supply eliminates need for backflow prevention
- Make-up fluid stored in the feeder tank can be pre-treated to meet appliance manufacturers specifications
- Fluid level switch shuts the pump off and enables alarm contacts if the storage tank level gets too low
- Diverter valve allows easy purging of air on initial start-up, and manual mixing of solution
- Fluid drained for service can easily be put back into the system
- Prevents major floods
- Provides leak detection
- Standard/Approvals: UL Listed
- WARRANTY: 1 Year Limited
Axiom, DMF150, System Feeder, 115 VAC, 18 psig Pressure, 1 gpm Flow Rate, 18-1/4 in H x 9-1/2 in W Dimensions
- Brand:Â Axiom
