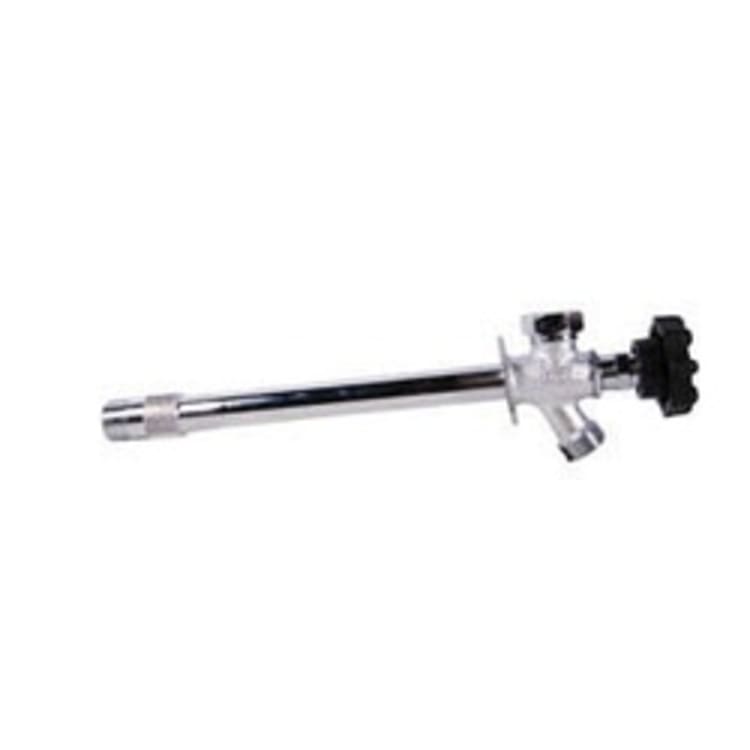

LEGEND 108-156A T-550 Frost-Free Sillcock, 1/2 x 14 in Nominal, MNPT/C End Style, Brass Body, Handwheel Actuator, Import
LEGEND Frost-Free Sillcock, Series: T-550, 1/2 x 14 in Nominal, MNPT/C End Style, 125 psi Pressure, Media: Oil/Water, Brass Body, Brass/EDPM Trim, Handwheel Actuator, Polished Chrome, 19.81 L x 3.49 in W Dimensions, Import
Documents
- Softouch handle™, patented with integrated anti-siphon and automatic draining, brass cap and rubber-clad handwheel is easy to operate with wet or gloved hands
- Quarter-turn operation, dual ceramic discs offer durable, positive shut-off
- Oversized, angled mounting flange with screw slots - covers enlarged, over-drilled sill holes
- Brass handle screw, cartridge body, aluminum identification plate, aluminum and tpr handwheel forged brass chrome plated bonnet nut, packing nut, end adapter, cartridge stem, vacuum breakers cap, adapter lock-ring, NBR (nitrile rubber) bonnet nut o-ring, stem packing, cup washer, vacuum breakers seat and o-ring, adapter o-ring, brass outer tube, stainless steel spring, retaining clip, forged brass check valve piston, spacer, cartridge end, fluoroelastomer o-ring, PTFE cartridge packing, EPDM spacer o-ring, ceramic disk, pom vacuum breakers body and disk, virgin CPVC resin socket adapter
- Standard/Approvals: ANSI/NSF 61G Certified|ASSE 1019|ANSI/ASME B1.20.1 (MNPT)|ANSI/ASME B16.18 (CTS solder)|cUPC/IAPMO Approved|ISO 9002 Certified
- WARRANTY: 5/25 Years
LEGEND Frost-Free Sillcock, Series: T-550, 1/2 x 14 in Nominal, MNPT/C End Style, 125 psi Pressure, Media: Oil/Water, Brass Body, Brass/EDPM Trim, Handwheel Actuator, Polished Chrome, 19.81 L x 3.49 in W Dimensions, Import
Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.
- Brand: LEGENDActuator Type: HandwheelBody Material: BrassDimensions: 19.81 L x 3.49 in WDomestic/Import: ImportEnd Style: MNPT/CFinish: Polished ChromeMedia: Oil/WaterNominal Size: 1/2 x 14Pressure Rating: 125Series: T-550Trim Material: Brass/EDPM
