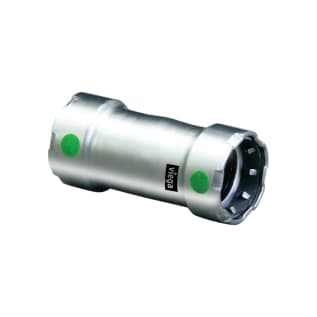

MegaPress® 90320 Coupling, 1 in Nominal, Press End Style, 316 Stainless Steel, Import
MegaPress® Coupling, Fitting/Connector Type: Coupling, 1 in Nominal, Press, 200 psi, 0 to 250 deg F, 316 Stainless Steel, 3.29 in L, Import
- Patented Viega Smart Connect® makes secure connection in less than 7 sec
- Minimizes system downtime by allowing for wet connection
- Fast and easy to use
- No welding, grinding or heavy equipment needed
- Helps installers easily identify unpressed connections during pressure testing
- Engineered with a 420 stainless steel grip ring and 304 stainless steel separator ring
- Wide range of fitting configurations
- Eliminate threading and welding
- No fire watches, hot work permits or gas freezing
- Makes secure press connections from 1/2 to 2 in less than seven seconds
- Compatible with existing press tools
- 316 stainless carries an NSF-16 potable water rating
- Model 5115.5
- Without stop
- Standard/Approvals: ASTM A312/A403|CRN 13492.5 A/B|IAPMO to IAPMO PS117|ICC-LC1002|TSSA/ASME B31.1/B31.3/B31.9|NSF/ANSI 61/372
- INCLUDES: EPDM Sealing Element
- WARRANTY: Limited
MegaPress® Coupling, Fitting/Connector Type: Coupling, 1 in Nominal, Press, 200 psi, 0 to 250 deg F, 316 Stainless Steel, 3.29 in L, Import
Viega MegaPress® Stainless 316 fittings are designed to be used with off-the-shelf Schedule 10 to Schedule 40 stainless steel pipe to form a complete press system that is ideal for many commercial and industrial applications. MegaPress® Stainless 316 fittings utilize a versatile EPDM sealing element to provide a reliable, leak-free connection. A Viega MegaPress® Stainless 316 system can stand up to harsh environments while transporting process and potable water, ammonia, low pressure steam, chlorides or any number of other essential fluids or gases.
- Brand: MegaPress®Dimensions: 3.29 in LDomestic/Import: ImportEnd Style: PressFitting/Connector Type: CouplingMaterial: 316 Stainless SteelNominal Size: 1Pressure Rating: 200Temperature Rating: 0 to 250
