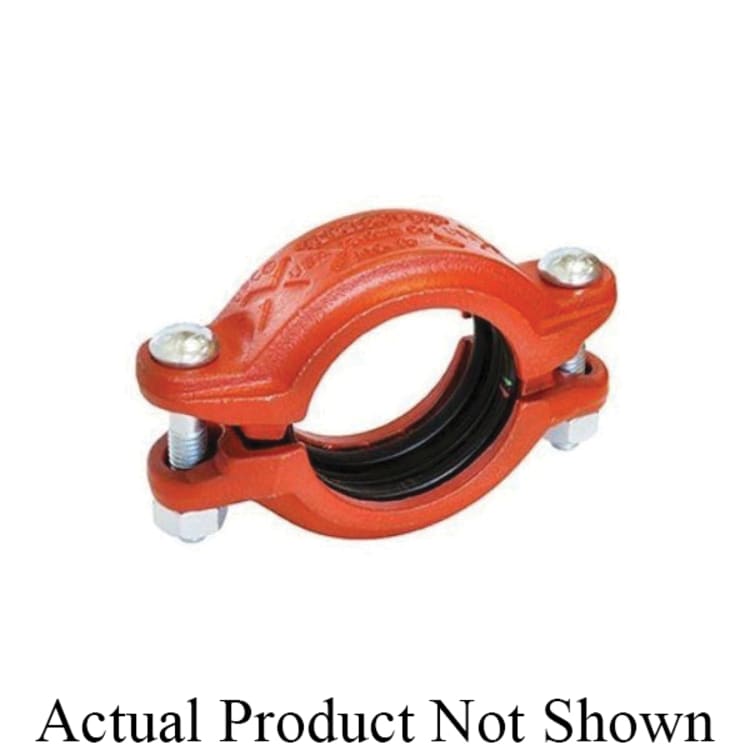

Gruvlok® SlideLOK® 0390113108 FIG 74 Coupling, 6 in Nominal, Grooved End Style, Ductile Iron, Hot Dipped Zinc Galvanized
Gruvlok® SlideLOK® Coupling, Series: FIG 74, Fitting/Connector Type: Coupling, 6 in Nominal, Grooved, 11 in Length, 700 psi, Ductile Iron, Hot Dipped Zinc Galvanized, -40 to 250 deg F, 6-5/8 in OD x 2 in D
Documents
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
- Recommended for water service, diluted acids, alkalies solutions, oil-free air and many chemical services
- Not for use in petroleum application
- Standard/Approvals: ASME B31|ASTM A536 Grade 65-45-12 Housing|ASTM A563 Grade A Nuts|SAE J429 Grade 5 Bolts|ASTM D2000 Gasket
- INCLUDES: (2) 5/8 x 3-1/2 in Zinc Electroplated Bolts, Zinc Electroplated Heavy Hexagonal Nuts and Grade EP EPDM Green/Red Gasket
- WARRANTY: 1 Year
Gruvlok® SlideLOK® Coupling, Series: FIG 74, Fitting/Connector Type: Coupling, 6 in Nominal, Grooved, 11 in Length, 700 psi, Ductile Iron, Hot Dipped Zinc Galvanized, -40 to 250 deg F, 6-5/8 in OD x 2 in D
The SlideLOK® coupling is the most rigid ready for installation coupling designed to reduce installation time. The slide action eases assembly and reduces installation time. The patented gasket provides four separate sealing surfaces for added protection. The SlideLOK® coupling is designed to be used with roll groove or cut groove steel pipe, grooved light wall pipe, Gruvlok® grooved-end fittings, and valves. The SlideLOK® coupling allows for a maximum working pressure of 750 psi on roll or cut grooved carbon steel standard wall pipe. The SlideLOK® coupling provides a rigid connection allowing pipe hanging practices per ASME B31 Pipe Codes.
- Brand: Gruvlok®Dimensions: 6-5/8 in OD x 2 in DEnd Style: GroovedFinish: Hot Dipped Zinc GalvanizedFitting/Connector Type: CouplingLength: 11Material: Ductile IronNominal Size: 6Pressure Rating: 700Series: FIG 74Temperature Rating: -40 to 250
