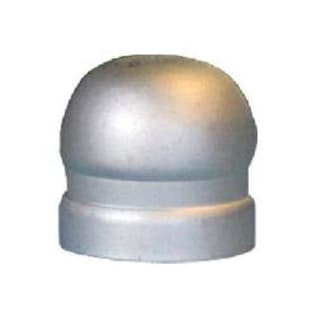

Gruvlok® 0390075158 FIG A7074SS Full-Flow Cap, 8 in Nominal, Grooved End Style, SCH 10, 304 Stainless Steel, Import
Gruvlok® Cap, Full-Flow, Series: FIG A7074SS, Fitting/Connector Type: Cap, 8 in Nominal, Grooved, 4 in Length, SCH 10, 250 psi, 304 Stainless Steel, Import
Documents
- Fabricated 304SS Fitting for use in Grooved Piping System with SCH 10 Pipe.
- Standard/Approvals: ANSI Specified|ANSI/NSF 61 MH21189|cULus Listed|IAPMO R&T Listed|SCC Accredited CB-P/S OCPS Accredite CCN|UL Listed|UPC Listed
Gruvlok® Cap, Full-Flow, Series: FIG A7074SS, Fitting/Connector Type: Cap, 8 in Nominal, Grooved, 4 in Length, SCH 10, 250 psi, 304 Stainless Steel, Import
Gruvlok® A Series Stainless Steel Fittings are full flow design with ends grooved to Gruvlok® specifications. The A Series standard material is formed from Type 304 Stainless Steel. The A Series Fittings are annealed after forming and grooving to provide increased corrosion resistance. Gruvlok® a series stainless steel 45 deg and 90 deg elbows and tees have compact center to-end dimensions which make installation quick and easy with the Gruvlok® FIG 7400SS Coupling, or other Gruvlok® products.
- Brand: Gruvlok®Domestic/Import: ImportEnd Style: GroovedFitting/Connector Type: CapLength: 4Material: 304 Stainless SteelNominal Size: 8Pressure Rating: 250Schedule Rating: SCH 10Series: FIG A7074SSType: Full-Flow
Gruvlok® 0390075158 FIG A7074SS Full-Flow Cap, 8 in Nominal, Grooved End Style, SCH 10, 304 Stainless Steel, Import
Gruvlok® Cap, Full-Flow, Series: FIG A7074SS, Fitting/Connector Type: Cap, 8 in Nominal, Grooved, 4 in Length, SCH 10, 250 psi, 304 Stainless Steel, Import
