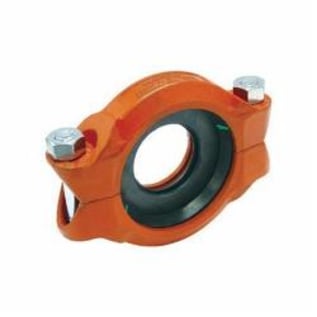

Gruvlok® 0390009348 FIG 7010 Pipe Reducing Coupling With EPDM Gasket, 3 x 2 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Painted, Domestic
Ductile Iron Pipe Fittings
MPN: 1379700 6c09a328d3e1e9e MFG #: 0390009348
262.26000 / ea

Gruvlok® Pipe Reducing Coupling, Series: FIG 7010, Reducing Coupling Fitting/Connector, 3 x 2 in Nominal, Grooved End Style, 1-7/8 in Thickness, 500 psi Pressure, Ductile Iron, Rust Inhibiting Painted, Orange, -40 to 250 deg F, 2-3/8 To 3-1/2 in OD x 7-1/8 in W Dimensions, Domestic

The Fig. 7010 Reducing Coupling makes it possible to directly connect two different pipe sizes, eliminating the need for two couplings and a reducing fitting. The specially designed reducing coupling gasket with a center rib assures proper positioning of the gasket and prevents the smaller pipe from telescoping into the larger during assembly. Fig. 7010 Reducing Coupling allows for working pressure ratings up to 500 PSI (34.5 bar). Not recommended for vacuum applications.

QTY
  • Features
  • 4811 lb max end load
  • Standard/Approvals: cULus Listed|FM Approved|NSF/ANSI 61|UPC Listed|VdS Approved
