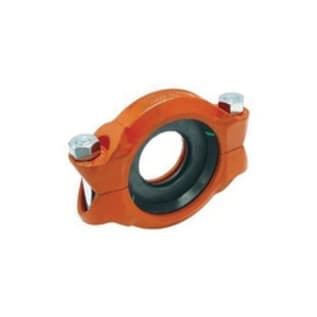

Gruvlok® 0390008886 FIG 7010 Reducing Coupling, 4 x 2 in Nominal, Grooved End Style, Rust Inhibiting Painted, Domestic
Gruvlok® Reducing Coupling, Series: FIG 7010, Reducing Coupling Fitting/Connector, 4 x 2 in Nominal, Grooved End Style, 8-7/8 in Length, 500 psi Pressure, Rust Inhibiting Painted, Orange, -20 to 180 deg F, 4-1/2 in OD x 2 in D Dimensions, Domestic
Documents
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
- Recommended for petroleum applications, air with oil vapors and vegetable and mineral oils
- Not for use in hot water or hot air
- Standard/Approvals: ASTM D2000 Gasket|ASTM A563 Grade A Nut|cULus Listed|FM Approved|SAE J429 Grade 5 Bolt
- INCLUDES: (2) 5/8 x 3-1/2 in Zinc Electroplated Bolts, Zinc Electroplated Heavy Hexagonal Nuts and Grade T Nitrile Orange Gasket
- WARRANTY: 1 Year
Gruvlok® Reducing Coupling, Series: FIG 7010, Reducing Coupling Fitting/Connector, 4 x 2 in Nominal, Grooved End Style, 8-7/8 in Length, 500 psi Pressure, Rust Inhibiting Painted, Orange, -20 to 180 deg F, 4-1/2 in OD x 2 in D Dimensions, Domestic
The FIG 7010 Reducing Coupling makes it possible to directly connect two different pipe sizes, eliminating the need for two couplings and a reducing fitting. The specially designed reducing coupling gasket with a center rib assures proper positioning of the gasket and prevents the smaller pipe from telescoping into the larger during assembly. FIG 7010 Reducing Coupling allows for working pressure ratings up to 500 psi (34.5 bars). Not recommended for vacuum applications.
- Brand: Gruvlok®Color: OrangeDimensions: 4-1/2 in OD x 2 in DDomestic/Import: DomesticEnd Style: GroovedFinish: Rust Inhibiting PaintedFitting/Connector Type: Reducing CouplingLength: 8-7/8Nominal Size: 4 x 2Pressure Rating: 500Series: FIG 7010Temperature Rating: -20 to 180
Gruvlok® 0390008886 FIG 7010 Reducing Coupling, 4 x 2 in Nominal, Grooved End Style, Rust Inhibiting Painted, Domestic
Gruvlok® Reducing Coupling, Series: FIG 7010, Reducing Coupling Fitting/Connector, 4 x 2 in Nominal, Grooved End Style, 8-7/8 in Length, 500 psi Pressure, Rust Inhibiting Painted, Orange, -20 to 180 deg F, 4-1/2 in OD x 2 in D Dimensions, Domestic
