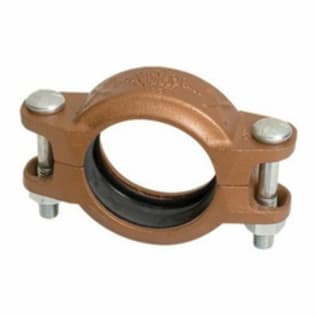

Gruvlok® 0880006044 FIG 6400 Rigid Pipe Coupling With EPDM Gasket, 3 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Paint, Import
Gruvlok® Rigid Pipe Coupling, Series: FIG 6400, Fitting/Connector Type: Coupling, 3 in Nominal, Grooved, 300 psi, Ductile Iron, Rust Inhibiting Paint, Copper, -40 to 250 deg F, 3.125 in OD x 6.28 in W x 1.68 in Thk, Import
Documents
- The Figure 6400 Rigid Coupling is specially designed to provide a rigid pipe connection to meet the specific demands of copper tubing installation size 2"-8".
- 2300 lb max end load
- Rust inhibiting enamel paint
- Standard/Approvals: NSF/ANSI 61|UPC Listed
Gruvlok® Rigid Pipe Coupling, Series: FIG 6400, Fitting/Connector Type: Coupling, 3 in Nominal, Grooved, 300 psi, Ductile Iron, Rust Inhibiting Paint, Copper, -40 to 250 deg F, 3.125 in OD x 6.28 in W x 1.68 in Thk, Import
The Figure 6400 Rigid Coupling is specially designed to provide a rigid pipe connection to meet the specific demands of copper tubing installation size 2 in - 8 in. Fast and easy swing-over installation of the rugged lightweight housing produces a secure rigid pipe joint. Available with Grade EP Copper EPDM flush gap style gasket. Gasket has service temperature range of -40 degF to +250 degF. NSF 61 Certified for cold +86 degF (+30 degC) and hot +180 degF (+82 degC) potable water service.
- Brand: Gruvlok®Color: CopperDimensions: 3.125 in OD x 6.28 in W x 1.68 in ThkDomestic/Import: ImportEnd Style: GroovedFinish: Rust Inhibiting PaintFitting/Connector Type: CouplingMaterial: Ductile IronNominal Size: 3Pressure Rating: 300Series: FIG 6400Temperature Rating: -40 to 250
