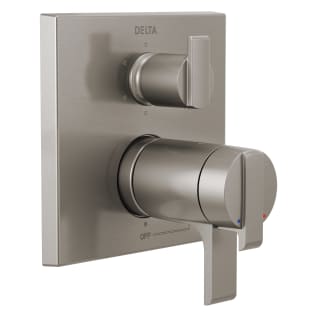

DELTA® T27T967-SS TempAssure® 17T Angular Modern Valve Trim, Stainless Steel
Shower/Tub Valves & Trims
MPN: 1342117 4570092 MFG #: T27T967-SS
778.65000 / ea

DELTA® Valve Trim, Angular Modern, Series: TempAssure® 17T, Ara®, 2 Handles, Lever Handle, 6-13/16 in W Trim, Thermostatic Valve/Cartridge, 1/2 in Valve Inlet, Wall Mount, For Use With: MultiChoice® R22000 Series Universal Rough-In Valve Body, Metal, Stainless Steel, Domestic

  • Features
  • 2-handle trim with separate temperature dial
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • TempAssure® thermostatic cartridge measures and monitors the temperature of the water and automatically adjusts to maintain a more precise water temperature
  • Main control utilizes dual-function Thermostatic Valve cartridge
  • Thermostatic wax element maintains the outlet temperature to +/-3.6 deg F
  • Top handle controls diverter functions
  • Bottom handle controls on/off and adjusts volume dial controls temperature
  • Field adjustable to limit bottom handle rotation into hot water zone
  • Bottom handle 90 deg max rotation
  • Red/Blue indicator markings
  • Three function diverter, 2 individual positions, 1 shared position
  • For two individual functions, no shared functions
  • Six function diverter for 3 individual positions, 3 shared positions
  • For three individual functions, no shared functions
  • 1/2 in rough-in
  • Standard installation allows up to 1-1/8 in THK finished wall
  • Not recommended for tub spout applications
  • Universal fittings
  • Standard/Approvals: ASME A112.18.1, CSA B125.1, Compliance to ICC/ANSI A117.1, Meets standards set by Americans with Disabilities Act (ADA)
  • INCLUDES: 6-Setting Integrated Diverter
