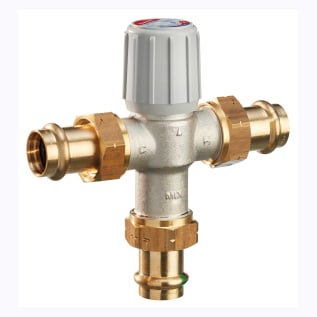

Honeywell AM100-UP-1LF/U AM-1 Thermostatic Mixing Valve, 1/2 in, Union ProPress, 150 psi, Brass Body, Import

1340978 MFG #: AM100-UP-1LF/U
$390.81 / ea
  • Body Material: Brass
  • Dimensions: 5.9 in H x 5.6 in W
  • Domestic/Import: Import
  • End Style: Union ProPress
  • Finish: PTFE Coated
  • Nominal Size: 1/2
  • Pressure Rating: 150
  • Series: AM-1
  • Softgoods Material: EPDM Rubber
  • Temperature Rating: 212

Honeywell No Lead Thermostatic Mixing Valve, Series: AM-1, 1/2 in Nominal, Union ProPress, 150 psi, 212 deg F, Brass Body, EPDM Rubber, PTFE Coated, 5.9 in H x 5.6 in W, Import

Honeywell AM-1 series adjusts, maintains, and limits the hot water temperature settings to provide comfort and protect equipment at home. While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.

  • Features
  • Dual purpose mixing or diverting values
  • Offers constant water temperature under changing operating conditions
  • Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds
  • Provides reliable performance at minimum flow of 05 gpm and proportional valve for simultaneous control of hot and cold
  • Tamper-resistant design with nickel-plated brass construction and EPDM O-rings
  • Designed for easy maintenance and Teflon® coating prevents mineral build-up and extends life
  • Operating temperature range: 70 to 145 deg F
  • Capacity: 3.9 Cv
  • Low lead content < 0.25% by weighted average
  • Standard/Approvals: ASSE 1017, CSA Certified, IAPMO Listed
