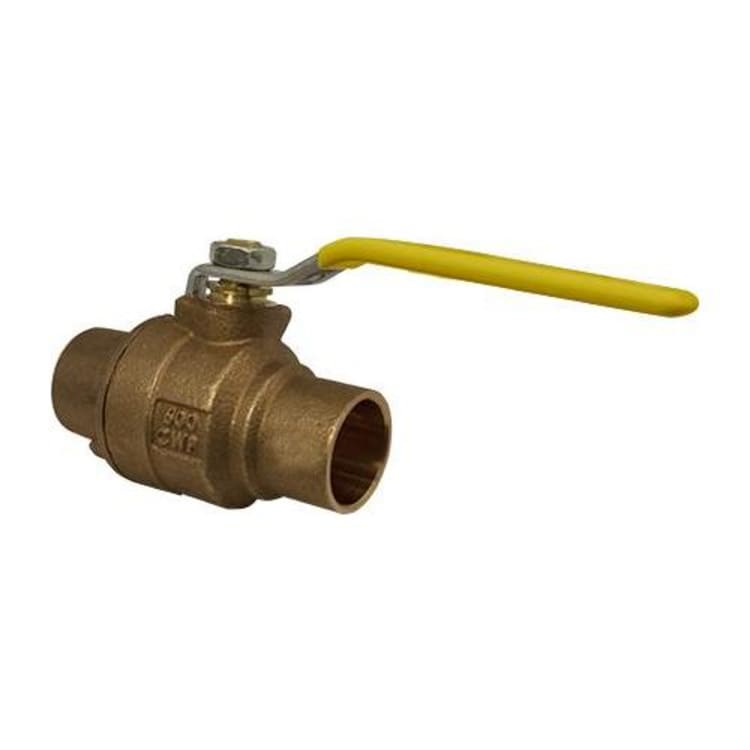

Apollo™ 77C20801A 77C-A 2-Piece Ball Valve, 2 in Nominal, Solder End Style, Bronze Body, Full Port, RPTFE Softgoods, Domestic
Apollo™, 77C20801A, Ball Valve, 2-Piece, Series: 77C-A, 2 in Nominal, Solder End Style, 600 psi CWP Pressure, 450 deg F, Full Port, Media: Water, Lever Operated Actuator, 6.07 in Inlet to Outlet Length, 3.68 in Top to Inlet Center, Bronze Body, Brass Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic
- Blow-out proof stem
- Adjustable stem packing
- Full port solid ball design
- 100% factory tested
- Zinc plated steel nut
- Steel, zinc plated with vinyl grip handle
- Vacuum service to 29 in Hg
- Standard lever and trim
- 150 psi steam working pressure
- Standard/Approvals: ASTM B16 Stem|ASTM B584 Retainer|CRN OC10908.5C|IAPMO R and T/UPC IGC Z1157|MSS SP-110|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- WARRANTY: 5 Years
Apollo™, 77C20801A, Ball Valve, 2-Piece, Series: 77C-A, 2 in Nominal, Solder End Style, 600 psi CWP Pressure, 450 deg F, Full Port, Media: Water, Lever Operated Actuator, 6.07 in Inlet to Outlet Length, 3.68 in Top to Inlet Center, Bronze Body, Brass Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic
The Apollo™ 77C-A Contractor Series ball valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants using proven ASTM materials.
- Brand: Apollo™Actuator Type: Lever OperatedBall Material: Chrome Plated BrassBody Material: BronzeDomestic/Import: DomesticEnd Style: SolderInlet to Outlet Length: 6.07Media: WaterNominal Size: 2Port Type: FullPressure Rating: 600 psi CWPSeries: 77C-ASoftgoods Material: RPTFETemperature Rating: 450Top to Inlet Center: 3.83Trim Material: Brass Stem and RPTFE SeatType: 2-Piece
