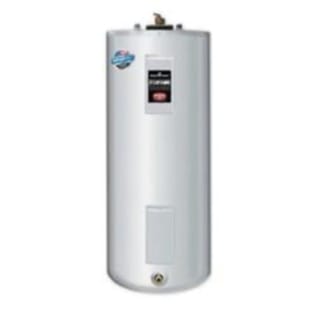

Bradford White® ElectriFLEX LD™ LE2120T3-1SCWW Light Duty Upright Electric Water Heater, 119 gal Tank, 9000/4500 W, 208/240 VAC, 1 ph
Bradford White® ElectriFLEX LD™ Electric Water Heater, Light Duty Upright, Series: LE2120T3-1, 119 gal Tank, 208/240 VAC, 9000/4500 W, 1 ph, 3/4 in NPT Water Connection, Screw-In Copper Heating Element, 18 gph at 100 deg F Rise Recovery, 150 psi, ASME Yes/No: No, Steel, 28 in Dia x 64-1/4 in H
- Fully automatic thermostat control - Fast acting surface-mount thermostat with high limit energy cut-off (manual reset) for safety
- Direct heat transfer with immersed element - Transfers heat directly and efficiently to the water
- Factory installed Hydrojet® total performance system - Sediment reducing device that also increases first hour rating of hot water while minimizing temperature build-up in tank
- Vitraglas® lining - Bradford White® tanks are lined with an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
- Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
- Insulation system - 2 in non-CFC foam insulation - Covers the sides and top of the tank, reducing the amount of heat loss
- Results in less energy consumption, improved operation efficiencies and jacket rigidity
- Water connection - 3/4 in NPT factory installed true dielectric fittings extend water heater life and eases installation
- Factory installed heat traps - Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
- Protective magnesium rod - Provides added protection against corrosion for long trouble free service
- Steel tank - Heavy gauge steel automatically formed, rolled and welded
- Field convertible - Units are shipped from factory standard 3 ph, non-simultaneous and can be converted to 1 ph and/or simultaneous operation in the field
- Copper screw type immersion element
- Standard/Approvals: AHRI Certified|ASHRAE 90.1b|CEC Listed|cETLus Listed|CSA Certified|CSAE Certified|NSF 372|UL 174
- INCLUDES: Temperature and Pressure Relief Valve
- WARRANTY: 3/5 Years Limited
Bradford White® ElectriFLEX LD™ Electric Water Heater, Light Duty Upright, Series: LE2120T3-1, 119 gal Tank, 208/240 VAC, 9000/4500 W, 1 ph, 3/4 in NPT Water Connection, Screw-In Copper Heating Element, 18 gph at 100 deg F Rise Recovery, 150 psi, ASME Yes/No: No, Steel, 28 in Dia x 64-1/4 in H
Light Duty upright models, with available capacities from 30 to 119 gal, are the perfect choice for many moderate commercial applications and are field convertible for various wiring configurations.
- Brand: Bradford White®ASME Yes/No: NoDimensions: 28 in Dia x 64-1/4 in HHeating Element: Screw-In CopperMaterial: SteelPhase: 1Power Rating: 9000/4500Pressure Rating: 150Recovery Rate: 18 gph at 100 deg F RiseSeries: LE2120T3-1Tank Capacity: 119Type: Light Duty UprightVoltage Rating: 208/240Water Connection: 3/4 in NPT
