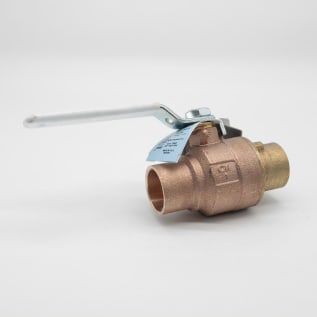

Apollo™ 77CLF20501A 77CLF-A 2-Piece Ball Valve, 1 in Nominal, Solder End Style, Bronze Body, Full Port, RPTFE Softgoods, Domestic
Apollo™, 77CLF20501A, Ball Valve, 2-Piece, Series: 77CLF-A, 1 in Nominal, Solder End Style, 600 psi CWP Pressure, 450 deg F, Full Port, Media: Water, 1 in Orifice, Lever Operated Actuator, 2.19 in Inlet to Outlet Length, 2.24 in Top to Inlet Center, Bronze Body, Brass Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic
- Easily identifiable white handle grip and blue Lead free hang tag
- EZ-Solder Lead free bronze body
- Blow-out proof stem
- Vacuum service to 29 in Hg
- Zinc plated steel nut
- UNS C27451 Lead free brass retainer
- Zinc plated steel/vinyl standard handle
- Standard trim
- 150 psi steam working pressure
- Standard/Approvals: ANSI 3rd Party Approval to 0.25 Percent Lead Max|ASTM B584-C89836 Lead-Free Retainer|City of Los Angeles DBS|CRN OC10908.5C|MSS SP-110|NSF/ANSI 61 Water Quality|NSF/ANSI 372 Lead-Free|IAPMO R and T/UPC IGC Z1157|UNS C27451 Lead-Free Stem|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- WARRANTY: 5 Years
Apollo™, 77CLF20501A, Ball Valve, 2-Piece, Series: 77CLF-A, 1 in Nominal, Solder End Style, 600 psi CWP Pressure, 450 deg F, Full Port, Media: Water, 1 in Orifice, Lever Operated Actuator, 2.19 in Inlet to Outlet Length, 2.24 in Top to Inlet Center, Bronze Body, Brass Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic
The Apollo™ 77CLF Contractor Series Lead Free Ball Valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants using proven EZ-Solder™ Lead Free materials.
- Brand: Apollo™Actuator Type: Lever OperatedBall Material: Chrome Plated BrassBody Material: BronzeDomestic/Import: DomesticEnd Style: SolderInlet to Outlet Length: 2.19Media: WaterNominal Size: 1Port Type: FullPressure Rating: 600 psi CWPSeries: 77CLF-ASoftgoods Material: RPTFETemperature Rating: 450Top to Inlet Center: 2.24Trim Material: Brass Stem and RPTFE SeatType: 2-Piece
