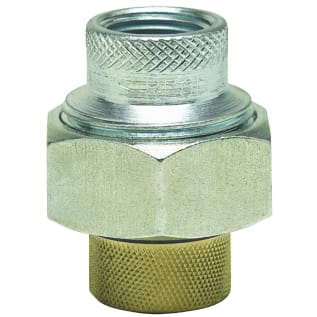

WATTS® 0009879 Dielectric Union, 2 in Nominal, FNPT End Style, Malleable Iron, Domestic
WATTS® Dielectric Union, 2 in Nominal, FNPT, 250 psi, Malleable Iron, Zinc Plated, 180 deg F, 4-1/8 in W x 3-1/8 in H, Domestic
Documents
- Individually factory certified to withstand a minimum of 600 V on a dry line with no flashover
- Designed and manufactured to the highest quality standards
- Polysulfone insulator
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Maximum pressure is 250 psi (17.2 bar)
- Maximum temperature 180 deg F (82 deg C)
- FIP thread to female brass pipe thread connections
- Standard/Approvals: Meet Federal Specifications for Tensile Strength and Thread End Connections|US Green Building Council Member|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- WARRANTY: 1 year
WATTS® Dielectric Union, 2 in Nominal, FNPT, 250 psi, Malleable Iron, Zinc Plated, 180 deg F, 4-1/8 in W x 3-1/8 in H, Domestic
This 2 in lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas and water piping. It consists of a female iron pipe thread to female brass pipe thread connection, union nut, two tailpieces and a Buna-N gasket that separates the tailpieces to prevent an electric current from occurring. The maximum temperature is rated up to 180 deg F at 250 psi.
- Brand: WATTS®Dimensions: 4-1/8 in W x 3-1/8 in HDomestic/Import: DomesticEnd Style: FNPTFinish: Zinc PlatedMaterial: Malleable IronNominal Size: 2Pressure Rating: 250Series: LF3003Temperature Rating: 180
