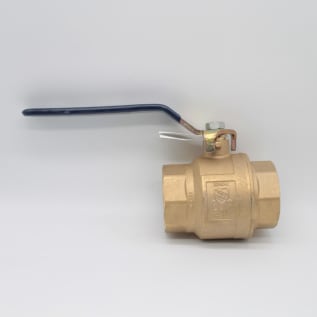

LEGEND 101-419NL T-2000NL Ball Valve, 2-1/2 in Nominal, FNPT End Style, Forged Brass Body, Full Port, PTFE/EPDM Rubber Softgoods, Import
LEGEND Ball Valve, Series: T-2000NL, 2-1/2 in Nominal, FNPT End Style, 400 psi CWP Pressure, Full Port, Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures, Lever Operated Actuator, Stainless Steel Ball, 5.55 in Inlet to Outlet Length, 4.65 in Top to Inlet Center, Forged Brass Body, Forged Brass Stem and PTFE Seat Trim, PTFE/EPDM Rubber Softgoods, Import
Documents
- Lead free design is suitable for all no-lead potable water installations, in full compliance of all Lead free plumbing laws
- Dezincification-resistant (DZR) forged brass resists corrosion from exposure to a wide variety of water conditions
- Bottom loaded, blow-out proof stem features a dual-seal PTFE packing and EPDM rubber O-Ring design, assuring positive sealing under a multitude of conditions
- Self-cleaning chrome plated ball resists mineral build-up and scaling typically found in harsh, varying water conditions
- 150 psi saturated steam
- PTFE packing and EPDM rubber O-ring
- Standard/Approvals: ANSI/ASME B1.20.1/B16.18|cCSAus Certified|MSS SP-110|UNS Alloy C46500|UL Listed|UPC/IAPMO Listed to NSF/ANSI 61/372|US Federal Public Law 111-380 (National Lead Free Plumbing Law)
- WARRANTY: 5 Years
LEGEND Ball Valve, Series: T-2000NL, 2-1/2 in Nominal, FNPT End Style, 400 psi CWP Pressure, Full Port, Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures, Lever Operated Actuator, Stainless Steel Ball, 5.55 in Inlet to Outlet Length, 4.65 in Top to Inlet Center, Forged Brass Body, Forged Brass Stem and PTFE Seat Trim, PTFE/EPDM Rubber Softgoods, Import
The T/S-2000NL no lead brass full port ball valve has a larger pattern body suitable for most any application. Constructed of no lead and DZR binary brass alloy. Available in sizes and configurations 1/4 to 4 in, FNPT x FNPT and 1/2 to 4 in, C.
- Brand:Â LEGENDActuator Type:Â Lever OperatedBall Material:Â Stainless SteelBody Material:Â Forged BrassDomestic/Import:Â ImportEnd Style:Â FNPTInlet to Outlet Length:Â 5.55Media:Â Natural/Manufactured/Mixed LP Gas/Air mixturesNominal Size:Â 2-1/2Port Type:Â FullPressure Rating:Â 400 psi CWPSeries:Â T-2000NLSoftgoods Material:Â PTFE/EPDM RubberTop to Inlet Center:Â 4.65Trim Material:Â Forged Brass Stem and PTFE Seat
