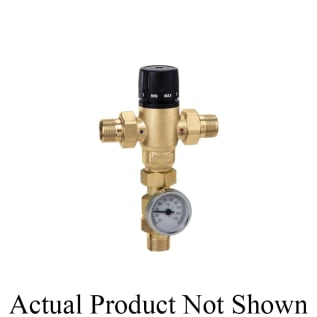

Caleffi MixCal™ 521510AC 3-Way Adjustable Thermostatic and Pressure Balanced Mixing Valve, 3/4 in, MNPT, 200 psi, 1 gpm, Brass Body
Caleffi MixCal™ Thermostatic and Pressure Balanced Mixing Valve, 3-Way Adjustable, Series: 521, 3/4 in Nominal Size, MNPT, 200 psi, 85 to 150 deg F, 1 gpm Flow, Media: Water/Glycol, 6 in Inlet to Outlet Length, 2-9/16 in Top to Inlet Center, Brass Body, Stainless Steel Trim, EPDM Seal, 8 in H
- Large mixing chamber and thermostatic cartridge - Enables precise mixed temperature stability during inlet temperature and pressure variations
- Anti-scale polymer materials - Inhibits scaling on internal sliding surfaces, assuring stable temperature control and long life
- Tamper-proof adjustment setting lock - Prevents tampering of the mixed water temperature setpoint
- Peroxide-cured seals - Stands up to treated water, chlorine or chloramines
- Precisely manufactured - Finely machined threads and double o-rings for smooth knob adjustment
- Internal anti-scale materials
- Locking set point knob
- Standard/Approvals: ANSI/NSF 372-2011|ASSE 1017-2009|CSA B125.3-2012|FM 21654|ISO 9001|IPC/IRC/UPC and NPC Compliance|Low Lead Certified by ICC-ES File PMG-13|ANSI/NSF 372 - 2016 Drinking Water System Components - Lead Content|Reduction of Lead in Drinking Water Act|California Health and Safety Code 116875|S.3874 Reduction of Lead in Drinking Water Act
- INCLUDES: Inlet Port Check Valve and Temperature Gauge
Caleffi MixCal™ Thermostatic and Pressure Balanced Mixing Valve, 3-Way Adjustable, Series: 521, 3/4 in Nominal Size, MNPT, 200 psi, 85 to 150 deg F, 1 gpm Flow, Media: Water/Glycol, 6 in Inlet to Outlet Length, 2-9/16 in Top to Inlet Center, Brass Body, Stainless Steel Trim, EPDM Seal, 8 in H
The Caleffi MixCal™ 521 series three-way thermostatic mixing valve is used in systems producing domestic hot water or in hydronic and radiant heating systems. It maintains the desired output temperature of the mixed water supplied at a constant set value compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The valve has been specifically certified to ASSE 1017 and Low Lead Plumbing Law by IAPMO R&T.
- Brand: CaleffiBody Material: BrassDimensions: 8 in HEnd Style: MNPTFlow Capacity: 1 gpmInlet to Outlet Length: 6Media: Water/GlycolNominal Size: 3/4Pressure Rating: 200Series: 521Softgoods Material: EPDM SealTemperature Rating: 85 to 150Top to Inlet Center: 2-9/16Trim Material: Stainless SteelType: 3-Way Adjustable
Caleffi MixCal™ 521510AC 3-Way Adjustable Thermostatic and Pressure Balanced Mixing Valve, 3/4 in, MNPT, 200 psi, 1 gpm, Brass Body
Caleffi MixCal™ Thermostatic and Pressure Balanced Mixing Valve, 3-Way Adjustable, Series: 521, 3/4 in Nominal Size, MNPT, 200 psi, 85 to 150 deg F, 1 gpm Flow, Media: Water/Glycol, 6 in Inlet to Outlet Length, 2-9/16 in Top to Inlet Center, Brass Body, Stainless Steel Trim, EPDM Seal, 8 in H
