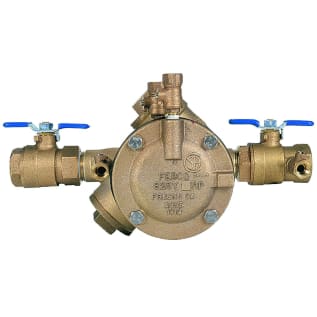

Febco® 0683009 LF825Y Y-Pattern Reduced Pressure Zone Assembly, 1-1/2 in, Thread, Quarter-Turn Ball Valve, Cast Copper Silicon Alloy Body

1281705 MFG #: 0683009
$2,166.00 / ea
Febco® 0683009 LF825Y Y-Pattern Reduced Pressure Zone Assembly, 1-1/2 in, Thread, Quarter-Turn Ball Valve, Cast Copper Silicon Alloy Body
  • Ball Valve/Gate Valve type: Quarter-Turn Ball Valve
  • Body Material: Cast Copper Silicon Alloy
  • Dimensions: 17 in L
  • Domestic/Import: Import
  • End Style: Thread
  • Nominal Size: 1-1/2
  • Port Type: Full
  • Pressure Rating: 175
  • Series: LF825Y-QT RP
  • Temperature Rating: 32 to 140
  • Type: Y-Pattern

Febco® Lead Free Reduced Pressure Zone Assembly, Y-Pattern, Series: LF825Y, 1-1/2 in Nominal, Thread, 175 psi Working, 32 to 140 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve type, Full Port, Cast Copper Silicon Alloy Body, 17 in L

This 1-1/2 in lead free Y pattern reduced pressure zone assembly is designed to prevent the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is used in water services to industrial plants, hospitals, morgues, mortuaries and chemical plants and is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a lead free body, threaded quarter turn ball valves, test cocks, spring loaded Y pattern check valves and one hydraulically dependent differential relief valve.

QTY
Add to List
  • Features
  • Modular relief valve for easy maintenance
  • Replaceable seats rings for longer valve life
  • Ultimate mechanical protection of potable water, against hazards of cross-connection contamination
  • Simple Service procedures
  • All internal parts serviceable in line
  • Low head loss
  • Internal relief valve pressure sensing passages
  • 350 psi hydrostatic test pressure
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • Standard/Approvals: Approved By The Foundation For Cross-Connection Control And Hydraulic Research At The University Of Southern California, ANSI/ASME B1.20.1, ASSE 1013, AWWA C511, CSA B64.4, NSF/ANSI 61-G, UPC Listed
  • INCLUDES: Spring Loaded "Y" Pattern Check Valves and (1) Hydraulically Dependent Differential Relief Valve
