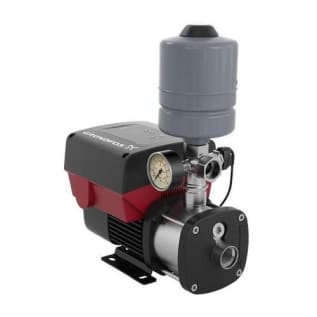

Grundfos 98548115 CMBE Compact Multi-Stage Centrifugal Booster Pump With Integrated Variable Frequency Drive, 1-1/4 in NPT Inlet x 1-1/4 in NPT Outlet, 1-1/2 hp Power Rating, 200 to 240 VAC, 1 ph, 304 Stainless Steel, 360 to 4000 rpm Motor

1277833 MFG #: 98548115
$3,946.00 / ea
  • Dimensions: 12.83 in L x 8.54 in W x 2.95 in H
  • Material: 304 Stainless Steel
  • Type: Compact Multi-Stage
  • Series: CMBE
  • Flow Rate: 24.7
  • Inlet Size: 1-1/4 in NPT
  • Maximum Suction Lift: 18.11
  • Motor Speed: 360 to 4000
  • Outlet Size: 1-1/4 in NPT
  • Voltage Rating: 200 to 240
  • Enclosure Type: IP55
  • Frequency Rating: 50
  • Impeller Type: (2) 304 Stainless Steel
  • Maximum Head: 31
  • Mounting Type: Horizontal
  • Phase: 1
  • Power Rating: 1-1/2
  • Temperature Rating: 122 deg F Ambient

Grundfos Centrifugal Booster Pump, Compact Multi-Stage, Series: CMBE, 24.7 gpm, 1-1/4 in NPT Inlet, 1-1/4 in NPT Outlet, 31 m Maximum Head, 18.11 ft Maximum Suction Lift, 1-1/2 hp, 200 to 240 VAC, 50 Hz, 1 ph, 360 to 4000 rpm Motor, (2) 304 Stainless Steel Impeller, Horizontal Mount, 122 deg F Ambient, IP55, 304 Stainless Steel, 12.83 in L x 8.54 in W x 2.95 in H

The CMBE Booster is designed for domestic and commercial water supply, pressure boosting, irrigation and dewatering applications. The CMBE series is available in both (1) 110 to 120 VAC and (1) 200 to 240 VAC variants and uses energy efficient, permanent magnet motor technology, which provides unmatched reliability, quiet operation and energy savings. Thanks to the integrated speed controller, the CMBE keeps a constant pressure in the pipe system. A pressure sensor monitoring discharge pressure will signal to the speed controller to change the motor speed to adapt the performance to the new situation.

QTY
  • Features
  • Videos
  • Constant pressure via integrated speed control
  • Robust, stainless steel design
  • Easy installation
  • Low energy consumption
  • Dry running protection
  • Noise level below 55 dBA and even lower at controlled speed
  • Five way fitting with non-return valve
  • Diaphragm tank
  • Pressure gauge
  • Pressure sensor
  • High-efficiency motor with frequency converter (IP55)
  • Without cable and plug
  • O-ring shaft seal with fixed driver, silicon carbide rotating seal face, silicon carbide stationary seal face and EPDM secondary seal
  • Standard/Approvals: AISI 304 Impeller|CE Certified|cULus Listed
  • INCLUDES: 85900702 1 ph Motor
