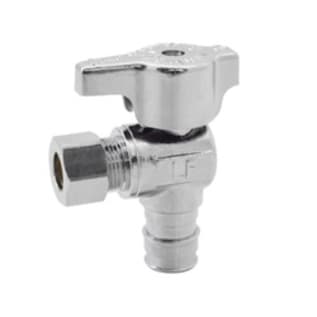

LEGEND 114-606NL T-595NL 1/4 Turn Angle Supply Stop Valve, 1/2 x 3/8 in, F1960 PEX x OD Compression, Brass Body, Import

1277692 MFG #: 114-606NL
$14.38 / ea
  • Body Material: Brass
  • Dimensions: 1.1 in H
  • Domestic/Import: Import
  • End Style: F1960 PEX x Compression
  • Finish: Polished Chrome
  • Nominal Size: 1/2 x 3/8
  • Pressure Rating: 125
  • Series: T-595NL
  • Temperature Rating: 120
  • Trim Material: Brass/EPDM
  • Type: 1/4 Turn

LEGEND Supply Stop Valve, 1/4 Turn Angle, Series: T-595NL, 1/2 x 3/8 in Nominal, F1960 PEX x OD Compression, 125 psi CWP, 120 deg F, Handle Actuator, Brass Body, Brass Trim, EPDM Rubber Seat, Chrome Plated, 1.1 in H, Import

  • Features
  • Lead-free design is suitable for all no lead potable water installations, in full compliance of the National lead-free plumbing law
  • Proprietary cold-expansion PEX inlet connection utilizes an exaggerated center barb and PEX reinforcing ring (not included) for a permanent, leak-free connection
  • Quarter-turn, self-cleaning ball valve design resists mineral and scale buildup, assuring positive-shutoff and re-opening
  • The ball-seat operation and dual O-ring stem seal features, out-perform traditional multi-turn stop designs
  • Compact lead-free forged brass chrome plated bodies are both durable and decorative
  • An ideal upgrade replacement for worn, leaking stops that won't close completely
  • Standard/Approvals: ASTM F1807/F1960, IAPMO/UPC Listed, ISO Certified, Truesdail Labs Certified to ANSI/NSF 61-G, UNS Alloy C46400, US Federal Public Law 111-380 (National Lead-Free Plumbing Law)
  • WARRANTY: 5 Years
