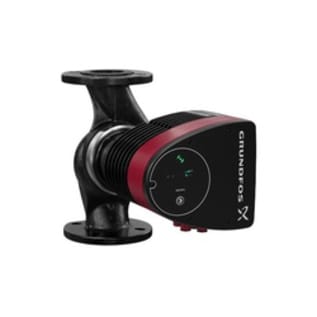

Grundfos 98126823 MAGNA1 Canned Rotor Circulator Pump, 115 to 230 VAC, 1 ph
Grundfos Circulator Pump, Canned Rotor, Series: MAGNA1, 32.81 ft Maximum Head, 8.62 to 178 W, 115 to 230 VAC, 0.28 to 1.61 A, 60 Hz, 1 ph, 175 psi Maximum, PES 30% GF Impeller, 140 deg F, IPX4D, Thrust Bearing, 7.91 in W x 6.61 in H
- Proportional-pressure control
- Constant-pressure control
- Constant-curve/constant-speed duty
- No external motor protection required
- Insulating shells supplied with single-head pumps for heating systems
- Wide temperature range due to thermal separation of the control box and pump media
- Fault relay
- Digital input (start/stop)
- Wireless multi pump function with time based alternation
- Simple installation
- No maintenance and long life
- Low noise level
- LED indication of control functions
- Infrared communication with Grundfos GO for fault message descriptions and simple settings
- Electronically controlled and high efficiency circulator pumps for commercial building
- Low energy consumption
- Flange pipe connection
- Cast iron pump housing
- Standard/Approvals: ANSI/UL 778|ASTM A48-250B|CAN/CSA C22.2 #108|ETL Listed|FCC WO Radial
- INCLUDES: 96166168 Motor
Grundfos Circulator Pump, Canned Rotor, Series: MAGNA1, 32.81 ft Maximum Head, 8.62 to 178 W, 115 to 230 VAC, 0.28 to 1.61 A, 60 Hz, 1 ph, 175 psi Maximum, PES 30% GF Impeller, 140 deg F, IPX4D, Thrust Bearing, 7.91 in W x 6.61 in H
MAGNA1 model C is a price competitive product designed for circulating liquids in heating systems where simple control and communication is desired. The pump is ideal for larger development projects and is the perfect replacement for UPS pumps in existing systems. By adjusting the duty point to the actual heat demand, the pump reduces energy costs.
- Brand:Â GrundfosAmperage Rating:Â 0.28 to 1.61Bearing Type:Â ThrustDimensions:Â 7.91 in W x 6.61 in HEnclosure Type:Â IPX4DFrequency Rating:Â 60Impeller Type:Â PES 30% GFMaximum Head:Â 32.81Maximum Pressure:Â 175Power Rating:Â 8.62 to 178Series:Â MAGNA1Temperature Rating:Â 140Type:Â Canned RotorVoltage Rating:Â 115 to 230Phase:Â 1
