Powers™

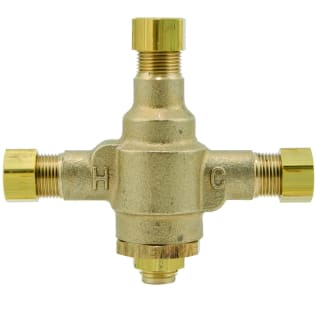

Powers™ 6550457 LFG480, LFG480-10-3/8 Lavatory Tempering Valve, 3/8 in, Compression, 125 psi, 0.25 gpm, Brass Body

1270835 MFG #: 6550457
$0.00 / ea
  • Body Material: Brass
  • Dimensions: 3-3/16 in H
  • Domestic/Import: Domestic
  • End Style: Compression
  • Nominal Size: 3/8
  • Pressure Rating: 125
  • Series: LFG480
  • Temperature Rating: 80 to 120
  • Finish: Rough Bronze
  • Flow Rate: 0.25

Powers™ Lavatory Tempering Valve, Series: LFG480, 3/8 in Nominal, Compression, 125 psi, 80 to 120 deg F, 0.25 gpm, Brass Body, Rough Bronze, 3-3/16 in H

This lead free HydroGuard® under the counter combination tempering valve for low flow control is designed for lavatory applications where the temperature of hot water must be controlled for safe, economic use. An advanced thermal actuator quickly senses and compensates for outlet temperature fluctuations induced by water temperature and pressure changes in the supply line. It features a lead free brass body with a rough bronze finish, 3/8 in compression connections, corrosion resistant internal components, integral checks to prevent cross flow and inlet screens to filter out debris. The temperature adjustment stem is simple to adjust and has a locking nut to prevent unauthorized or accidental adjustment. Minimum flow is 0.25 gpm and maximum flow is 2.3 gpm at 45 psi pressure drop. Factory temperature is set at 105 deg F.

QTY
  • Features
  • Solid lead free brass construction enhances durability
  • Adjustable temperature selection with locknut to prevent tampering
  • Advanced thermal actuator improves performance
  • Temperature controls to ASSE 1070, down to 0.25 gpm for LFG480
  • Corrosion resistant internal components for extended life
  • Integral checks with screens prevents cross flow and filter out debris
  • Factory set to 105 deg F
  • 5 to 180 deg F hot water supply
  • 120 to 180 deg F inlet hot water
  • 40 to 80 deg F inlet cold water
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • Standard/Approvals: ASSE 1070|CSA B125.3|Advanced Thermal Actuation | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
