Fernco®

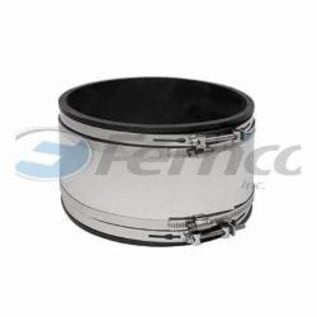

Fernco® 5006-1212RC 5006RC Strong Back Flexible Pipe Coupling, 12 in Nominal, Concrete x Cast Iron/Plastic End Style, PVC, Domestic
Fernco® Pipe Coupling, Strong Back Flexible, Series: 5006RC, Fitting/Connector Type: Coupling, 12 in Nominal, Concrete x Cast Iron/Plastic, 6.42 in Length, PVC, -30 to 140 deg F, 12.6 x 15.25 in, Domestic
Documents
- 5000 strong back rc couplings offer a 0.012 in stainless steel shield and a molded in bushing
- 300 series stainless steel clamp bands
- 6 in and larger couplings incorporate two nut and bolt take-up points per band
- 60 in lb installation torque
- Flexible PVC 60 duro shore a
- 4.3 psi tested pressure
- Connects concrete to CI, plastic, copper, steel or lead
- Standard/Approvals: ASTM D5926/C1173
- WARRANTY: Limited
Fernco® Pipe Coupling, Strong Back Flexible, Series: 5006RC, Fitting/Connector Type: Coupling, 12 in Nominal, Concrete x Cast Iron/Plastic, 6.42 in Length, PVC, -30 to 140 deg F, 12.6 x 15.25 in, Domestic
Designed for resistance to heavy earth loads and shear forces, while providing improved pipe alignment.
- Brand: Fernco®Dimensions: 12.6 x 15.25Domestic/Import: DomesticEnd Style: Concrete x Cast Iron/PlasticFitting/Connector Type: CouplingLength: 6.42Material: PVCNominal Size: 12Series: 5006RCTemperature Rating: -30 To 140Type: Strong Back Flexible
