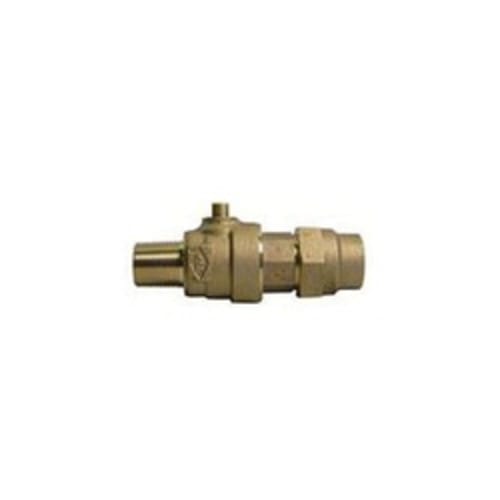

A.Y. McDonald 5192-305, 74704B-3G Ball Style Corporation Stop, 1 in Nominal, IPS PEP COMP x MNPT End Style, Brass Body, Full Port, EPDM Softgoods
A.Y. McDonald Ball Style Corporation Stop, 1 in Nominal, IPS PEP COMP x MNPT, 300 psig, Full Port, PTFE Coated Brass Ball, 1-1/2 in Top to Inlet Center, Brass Body, EPDM Softgoods
Documents
- Brass components in contact with potable water conform to ASTM B584, UNS C89833 (latest revision) and identified with NL
- PTFE coated brass ball rotates 360 deg
- Blow-out proof EPDM port seals
- End piece joint sealed with an EPDM O-Ring and thread locker
- Insert stiffeners are required on all flexible plastic connections
- EPDM O-ring/port seal
- Standard/Approvals: ANSI/AWWA C800|ASTM B584|NSF/ANSI 61/372|UNS C89833
A.Y. McDonald Ball Style Corporation Stop, 1 in Nominal, IPS PEP COMP x MNPT, 300 psig, Full Port, PTFE Coated Brass Ball, 1-1/2 in Top to Inlet Center, Brass Body, EPDM Softgoods
Ball Style Corporation Stop made from No-Lead brass with Male National Pipe Thread inlet, full port ball opening and PEP -3G McGrip (Tighten to Stop) Compression thread outlet. Incorporates an O-ring sealed, blow-out proof, 360 deg rotation, standard operating head. Valve is designed for maximum operation pressure of 300 psig. Includes a PTFE coated brass ball supported by two blow-out proof EPDM reinforced port seals. End piece has dual seal which includes an O-ring and thread locker which also prevents accidental removal.
- Brand:Â A.Y. McDonaldBall Material:Â PTFE Coated BrassBody Material:Â BrassEnd Style:Â IPS PEP COMP x MNPTNominal Size:Â 1Port Type:Â FullPressure Rating:Â 300Series:Â 74704B-3GSoftgoods Material:Â EPDMTop to Inlet Center:Â 1-1/2
