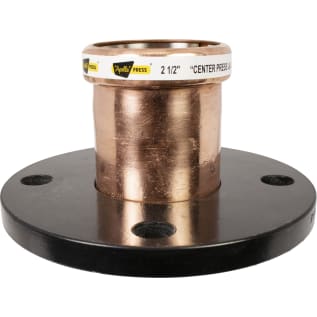

EPC ApolloPRESS® 10061763 8771 Large Diameter Companion Flange, 2-1/2 in, Copper, Press, 150 lb
EPC ApolloPRESS® Companion Flange, Lead Free Large Diameter, Series: 8771, 2-1/2 in Nominal, Press, 200 psi, 150 lb, 0 to 250 deg F, Copper, 3.62 in L x 7 in W x 7 in H
- Black powder-coated steel flange base
- Leak-before-press technology
- Compatible with XL-C™ pressing tools
- Approved for underground installation (per local installation code)
- Use with hard/soft ASTM B88 K, L and M copper tube
- EPDM O-ring, silicone lubrication, 304/306 stainless steel grab ring, nylon 66 spacer ring
- Temperature range 0 to 250 deg F depending on application, hot water up to 250 deg F, chilled water down to 33 deg F
- Standard/Approvals: ARRA Compliant|cUPC® Compliant|NSF/ANSI NSF 61/372|UNS C12200 Body|UPC Listed
- WARRANTY: 50 Years
EPC ApolloPRESS® Companion Flange, Lead Free Large Diameter, Series: 8771, 2-1/2 in Nominal, Press, 200 psi, 150 lb, 0 to 250 deg F, Copper, 3.62 in L x 7 in W x 7 in H
The APOLLOXPRESS® 8771 large Dia press 150lb companion flange features a lead-free dezincification resistant copper body, a patented stainless-steel solid cross-section grab ring, a nylon separation ring and an EPDM O-ring. The black powder coating provides separation of dissimilar metals preventing electrolysis. Our large Dia APOLLOXPRESS® products are manufactured utilizing proven ASTM materials and standards. Proudly made in the USA.
- Brand: EPCConnection Type: PressDimensions: 3.62 in L x 7 in W x 7 in HMaterial: CopperNominal Size: 2-1/2Pressure Class: 150Pressure Rating: 200Series: 8771Temperature Rating: 0 to 250Type: Large Diameter
