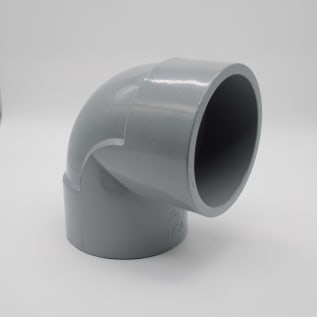

IPEX Corzan® 059202 90 deg Pipe Elbow, 4 in, Socket, SCH 80/XH, CPVC

1254330 MFG #: 059202
$356.26 / ea
  • End Style: Socket
  • Fitting/Connector Type: 90 deg Elbow
  • Material: CPVC
  • Nominal Size: 4
  • Schedule Rating: SCH 80/XH
  • Temperature Rating: 200

IPEX Corzan® Pipe Elbow, 90 deg Elbow, 4 in Nominal, Socket, SCH 80/XH, CPVC, 200 deg F, 5.34 in OD

IPEX vinyl process piping systems; a complete line of pipe, fittings and valves to meet all your process system requirements. IPEX developed the Xirtec®140 (PVC) and Corzan® (CPVC) systems to meet industry demands for a complete Pipe, Valves and Fittings (PVF) package that is designed, produced and backed by a single manufacturer. These systems are engineered and manufactured to IPEX's strict quality, performance and dimensional standards, and therefore eliminate the problems inherent in purchasing and installing piping system components manufactured by several different companies. IPEX high-performance vinyl systems are designed to meet the temperature, pressure and size requirements of piping systems used in chemical processes and other industrial applications. They feature outstanding resistance to photo degradation, creep stress and immunity to oxidation, and are exceptionally suited for use with a wide range of acids, alcohols, salts and halogens. The perfect extended service, low maintenance alternative to common and exotic metal systems.

QTY
  • Features
  • Lower installation costs: easy handling in addition to a lower material cost, Xirtec & Corzan pipe can significantly reduce labor and transportation costs on a typical installation
  • Extended Life: Xirtec PVC and Corzan CPVC provide years of maintenance free service, our materials will not rust, pit, scale or corrode on either interior or exterior surfaces
  • Superior underground Performance: Xirtec and Corzan CPVC are immune to damage from naturally corrosive soil conditions as well as electrochemical and galvanic corrosion, this is particularly advantageous in underground installations where galvanic reaction often causes damage to metal piping products
  • Exceptional chemical Resistance: the IPEX vinyl systems, including pipe valves and fittings provide outstanding resistance to a wide range of chemicals such as most acids, alcohols, alkalies, salt solutions, halogens and more
  • Improved Flow: Xirtec and Corzan have a substantially lower Roughness factor than metal and other materials and since they do not rust, pit, scale or corrode, the interior walls remain smooth in virtually any service
  • Potable water Approved: Xirtec140 polyvinyl chloride (PVC) and Corzan chlorinated polyvinyl chloride (CPVC) are suitable for use with potable water as listed with the national Sanitation Foundation (NSF) and CSA International
  • Exceptional temperature Range: IPEX vinyl systems are designed to meet a broad range of service temperatures
  • Lower thermal conductivity: with a low thermal conductivity factor, IPEX vinyl systems have less heat loss or gain, thus sustaining service temperature more efficiently than metal piping, as a result, pipe insulation is often not required
  • Environmentally responsible with energy conservation a prime concern, you can rely on the fact that IPEX's manufacturing process for Xirtec and Corzan piping materials requires less than half the energy needed to produce the equivalent size of carbon steel or steel alloy materials
  • Standard/Approvals: ASTM F439, NSF 14
