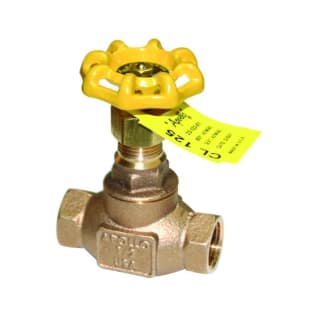

Apollo™ 3313501 120T Globe Valve, 1 in Nominal, NPT End Style, 125 lb, Bronze Body, Handwheel Actuator, Domestic
Apollo™, 3313501, Globe Valve, Series: 120T, 1 in Nominal, NPT End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, 12.1 gpm Flow Rate, Handwheel Actuator, 5.4 in Open Top to Inlet Center, Bronze Body, PTFE/Brass Trim, Graphite/Grafoil Softgoods, 5.4 in H x 3.75 in L Dimensions, Domestic
- Optimum flow capacity
- Adjustable graphite stem packing
- 100% factory tested
- Dezincification resistant
- Screw-in bonnet
- Malleable iron rugged hand wheel
- Back seat protection
- Standard/Approvals: ARRA Compliant|MSS SP-80|ASME B1.20.1|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- WARRANTY: 5 Years
Apollo™, 3313501, Globe Valve, Series: 120T, 1 in Nominal, NPT End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, 12.1 gpm Flow Rate, Handwheel Actuator, 5.4 in Open Top to Inlet Center, Bronze Body, PTFE/Brass Trim, Graphite/Grafoil Softgoods, 5.4 in H x 3.75 in L Dimensions, Domestic
The Apollo model 120T (33 series) globe valve provides a cost effective made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo Globe valve can reliably be installed in most plumbing and heating systems (or building service piping).
- Brand: Apollo™Actuator Type: HandwheelBody Material: BronzeDimensions: 3.75 in L x 5.4 in HDomestic/Import: DomesticEnd Style: NPTFlow Rate: 12.1Nominal Size: 1Pressure Class: 125Pressure Rating: 200/125Series: 33 SeriesSoftgoods Material: Grafoil® PackingTemperature Rating: -20 to 406Trim Material: PTFE Disc
Apollo™ 3313501 120T Globe Valve, 1 in Nominal, NPT End Style, 125 lb, Bronze Body, Handwheel Actuator, Domestic
Apollo™, 3313501, Globe Valve, Series: 120T, 1 in Nominal, NPT End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, 12.1 gpm Flow Rate, Handwheel Actuator, 5.4 in Open Top to Inlet Center, Bronze Body, PTFE/Brass Trim, Graphite/Grafoil Softgoods, 5.4 in H x 3.75 in L Dimensions, Domestic
