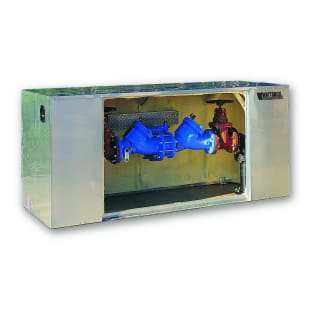

WATTS® 0888794 Insulated Enclosure, 105 in L x 36 in W x 53 in H, 117 x 48 in Mounting Pad, Aluminum Body

1249679 MFG #: 0888794
/ ea

WATTS® Insulated Enclosure, 105 in Length, 36 in Width, 53 in Height, 117 x 48 in Mounting Pad, 120 VAC, 8, Aluminum Body

Series WattsBox Backflow Preventer Insulated Enclosures protect backflow prevention assemblies, such as PVBs, double checks, and RPZs, that are subjected to freezing conditions. Series WattsBox enclosure consists of reinforced aluminum or fiberglass construction, providing access through lockable doors and/or a hinged lid for testing/certification purposes. It has a means for a permanent anchor and is completely removable for maintenance purposes. It has drain openings that are protected against severe weather conditions. Series WattsBox is available with or without insulation and heat in various models and sizes. Thermostatically protects to -30 deg F.

QTY
  • Features
  • Lead free
  • Designed to eliminate valve vault entry requirements of OSHA confined space ruling 29CFR 1910.146
  • Single source watts regulator warranty of the enclosure, the backflow preventer, and the heat source
  • Allows for the installation of the backflow preventer at the service connection
  • Is specifically designed to meet NFPA guidelines
  • The enclosure provides freeze protection to maintain the water supply to the property's fire protection system
  • Strategically placed doors provide access to the backflow prevention assembly for testing and repair without removal of the entire unit
  • An economical alternative to expensive retrofit installations
  • Eliminates potential drainage constraints in existing equipment rooms
  • 12 in clearance and 1900 W heaters
  • Standardly furnished with thermostatically controlled heat source for freeze protection down to -30 deg F
  • Contains no structural wood or particle board for long life
  • Easy installation aluminum enclosures feature interlocking panels which eliminate the use of screws during assembly
  • Can be temporarily removed for replacement of the backflow preventer without the need for replacement of freeze protection services
  • Minimum 18 gauge aluminum or fiberglass construction
  • Fitts Watts valves 4 in 957OSY, 6 in 957NRS, 8 in 957NRS
  • Stainless steel hasps or handle to accept customer supplied lock
  • Relief ports at enclosure grade leve
  • Adjustable internal anchors
  • 30 W through 90 W are heating cables
  • Standard/Approvals: ASSE 1060, AWWA Standard, CSA Certified, NFPA 3-3.1.8/3.6.1.3.2, OSHA 29CFR 1910.146, UL Listed
