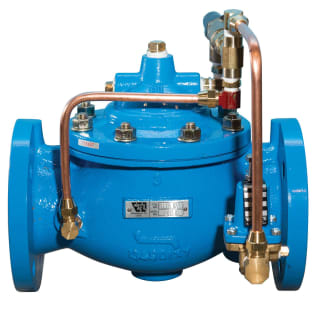

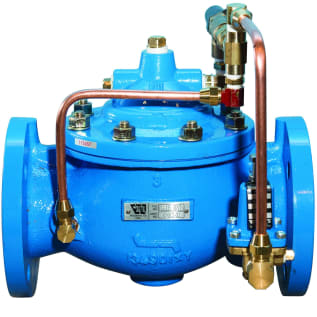

WATTS® V2013-03 LFF115 Pressure Reducing Globe Valve, 3 in Nominal, Flanged End Style, 250 psi Pressure, 30 to 485 gpm Flow Rate, Ductile Iron Body, Domestic
WATTS®, V2013-03, Pressure Reducing Globe Valve, Series: LFF115, 3 in Nominal, Flanged End Style, 250 psi Pressure, 150 lb Pressure Class, 160 deg F, 30 to 485 gpm Flow Rate, 12 in Inlet to Outlet Length, Ductile Iron Body, Buna-N® O-Ring Softgoods, Epoxy Coated, Domestic
Documents
- Copper tubing/brass fittings
- The WATTS® ACV Pressure Reducing Control Valve is designed to automatically reduce a fluctuating higher upstream pressure to a constant lower downstream pressure regardless of varying flow rates
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 20 to 175 psi reducing control pressure
- Adjustable opening speed
- Standard/Approvals: ASTM A536 Body|NSF Approved|US Green Building Council Member | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- INCLUDES: (2) Isolation Cocks and (1) Flo-Clean Strainer
- WARRANTY: 1 year
WATTS®, V2013-03, Pressure Reducing Globe Valve, Series: LFF115, 3 in Nominal, Flanged End Style, 250 psi Pressure, 150 lb Pressure Class, 160 deg F, 30 to 485 gpm Flow Rate, 12 in Inlet to Outlet Length, Ductile Iron Body, Buna-N® O-Ring Softgoods, Epoxy Coated, Domestic
This 3 in globe pattern class 150 flanged epoxy coated pressure reducing control valve, model 115, is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits possible damaging high inlet pressure from passing through the valve to downstream piping. This valve has an adjustable closing speed.
- Brand: WATTS®Body Material: Ductile IronDomestic/Import: DomesticEnd Style: FlangedFinish: Epoxy CoatedFlow Rate: 30 to 485Inlet to Outlet Length: 12Nominal Size: 3Pressure Class: 150Pressure Range: 250Series: LFF115Softgoods Material: Buna-N® O-RingTemperature Rating: 160
WATTS® V2013-03 LFF115 Pressure Reducing Globe Valve, 3 in Nominal, Flanged End Style, 250 psi Pressure, 30 to 485 gpm Flow Rate, Ductile Iron Body, Domestic
WATTS®, V2013-03, Pressure Reducing Globe Valve, Series: LFF115, 3 in Nominal, Flanged End Style, 250 psi Pressure, 150 lb Pressure Class, 160 deg F, 30 to 485 gpm Flow Rate, 12 in Inlet to Outlet Length, Ductile Iron Body, Buna-N® O-Ring Softgoods, Epoxy Coated, Domestic
