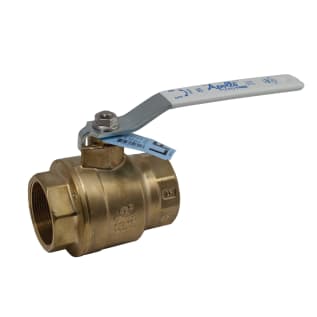

Apollo™ 77FLF10401 77FLF-100 2-Piece Gas Ball Valve, 3/4 in, FNPT, Brass Body, Full Port, Domestic
Apollo™, 77FLF10401, Ball Valve, 2-Piece, Series: 77FLF-100, 3/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Lever Operated Actuator, 2.51 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Brass Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic
Documents
- Heavy pattern forged design
- Superior RPTFE seats and packing
- Adjustable stem packing
- Blow-out proof stem
- Dezincification resistant materials
- 100% factory tested
- Silicone free assembly
- Vacuum service to 29 in Hg
- ASTM B16-C36000 brass gland
- UNS C27451 Lead free brass retainer
- Plated steel handle with insulated polyvinyl grip
- 150 psi steam working pressure
- Standard/Approvals: ARRA Compliant|Annex G|IAPMO IGC-157|Federal Public Law 111-380|ANSI 3Rd Party Approved and Listed|MSS-SP-110|UNS C27451|UL YSDT/MHKZ/YQNZ/YRBX/YRPV|UL VQGU|NSF/ANSI 61-8|NSF/ANSI 372|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- WARRANTY: 5 Years
Apollo™, 77FLF10401, Ball Valve, 2-Piece, Series: 77FLF-100, 3/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Lever Operated Actuator, 2.51 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Brass Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic
The Apollo™ 77FLF-100 Series is a Lead Free, full port forged brass ball valve suitable for a wide range of plumbing and heating applications, including potable water. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.
- Brand: Apollo™Actuator Type: Lever OperatedBall Material: Chrome Plated BrassBody Material: Forged BrassDomestic/Import: DomesticEnd Style: FNPTInlet to Outlet Length: 2.51Nominal Size: 3/4Port Type: FullPressure Rating: 600 psi CWPSeries: 77FLF-100Softgoods Material: RPTFETemperature Rating: 0 to 400Top to Inlet Center: 1.91Trim Material: Brass Stem and RPTFE SeatType: 2-Piece
