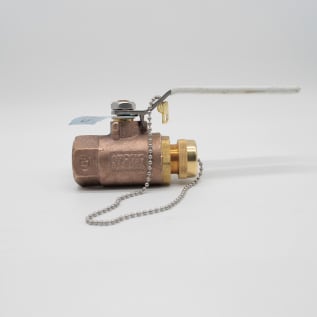

Apollo™ 70LF104HC 70LF-100 2-Piece Ball Valve With Hose Cap and Chain, 3/4 in, FNPT, Bronze Body, Standard Port, Domestic

1224383 MFG #: 70LF104HC
$101.20 / ea
Apollo™ 70LF104HC 70LF-100 2-Piece Ball Valve With Hose Cap and Chain, 3/4 in, FNPT, Bronze Body, Standard Port, Domestic
  • Actuator Type: Lever Operated
  • Ball Material: Chrome Plated Brass
  • Body Material: Lead Free Bronze
  • Domestic/Import: Domestic
  • End Style: FNPT
  • Inlet to Outlet Length: 3
  • Nominal Size: 3/4
  • Port Type: Standard
  • Pressure Rating: 600 psig CWP
  • Series: 70LF-100-HC
  • Softgoods Material: RRPTFE
  • Temperature Rating: 450
  • Top to Inlet Center: 2.12
  • Trim Material: Brass Stem and RPTFE Seat
  • Type: 2-Piece

Apollo™ Ball Valve, 2-Piece, Series: 70LF-100, 3/4 in Nominal, FNPT, 600 psig CWP, 450 deg F, Standard Port, Lever Handle Actuator, Chrome Plated Brass Ball, 3 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, Bronze Body, Brass Trim, RPTFE Seat/RPTFE Stem Packing, Domestic

The Apollo® 70LF series has the same rugged features as the industry standard 70 Series valves with the added advantage of lead free materials. The 70LF is ideal for plumbing and heating systems, including potable water. Trusted Apollo® performance with a wide range of popular options.

QTY
Add to List
  • Features
  • Videos
  • HC: Hose cap and chain with stainless steel lever and nut
  • Lead free brass and bronze materials
  • ANSI/NSF 61 section 8 2008 180 deg F
  • Easily identifiable blue lead free hang tag
  • RPTFE seats and stuffing box ring
  • Chromium plated ball
  • Designed, manufactured and 100% factory tested in the USA
  • 150 psig saturated steam
  • Vacuum service to 29 in Hg
  • Lead free: the wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
  • Complies with CA AB1953, VT Act 193, MD HB372, LA HB471 and Federal Public Law 111-380, ANSI 3rd party approved and listed
  • Standard/Approvals: ANSI 3RD Party Certified, CRN OC10908.5C, Lead Free Compliant, MSS SP-110 Compliant, NSF/ANSI 61-8 Annex G, NSF/ANSI 372, UNS C89836 Body, UNS C27451 Ball/Stem
  • WARRANTY: 5 Years
